14ft Vertical V Gooving Machine in saudi arabia

A vertical V-grooving machine is a tool used to cut a V-shaped groove into a material, typically wood or aluminum. It is commonly used in the construction industry for creating decorative or functional V-grooves in panels, doors, or other flat surfaces.

The machine consists of a vertical spin

dle with a V-shaped cutting blade attached to it. The material to be grooved is placed on a table or work surface, and the spindle is lowered into the material to cut the groove. The depth of the groove can be adjusted, allowing for precise and consistent cuts.

There’s no better partner, than KRRASS!

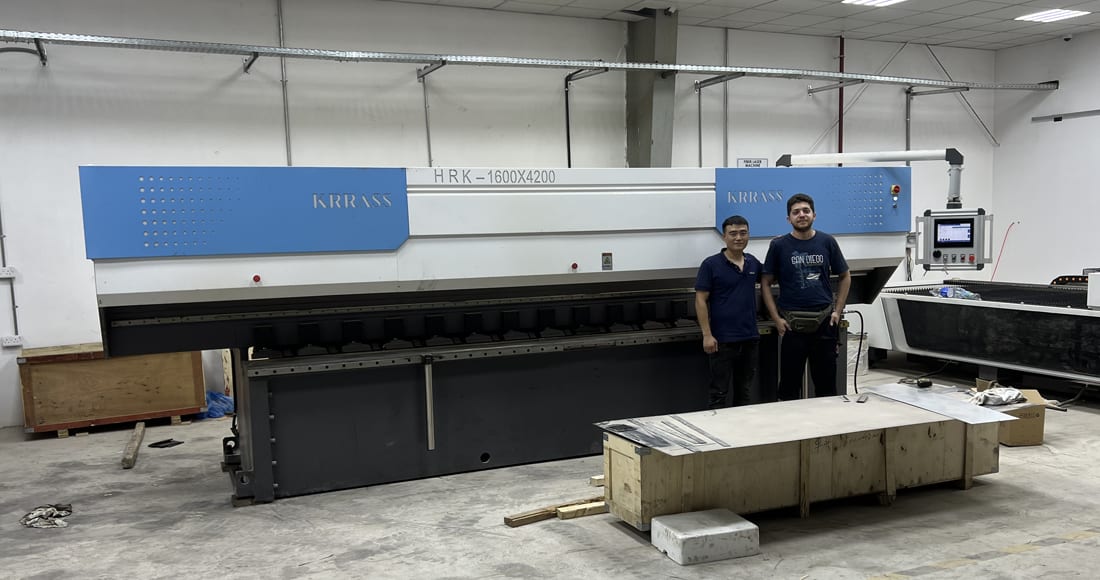

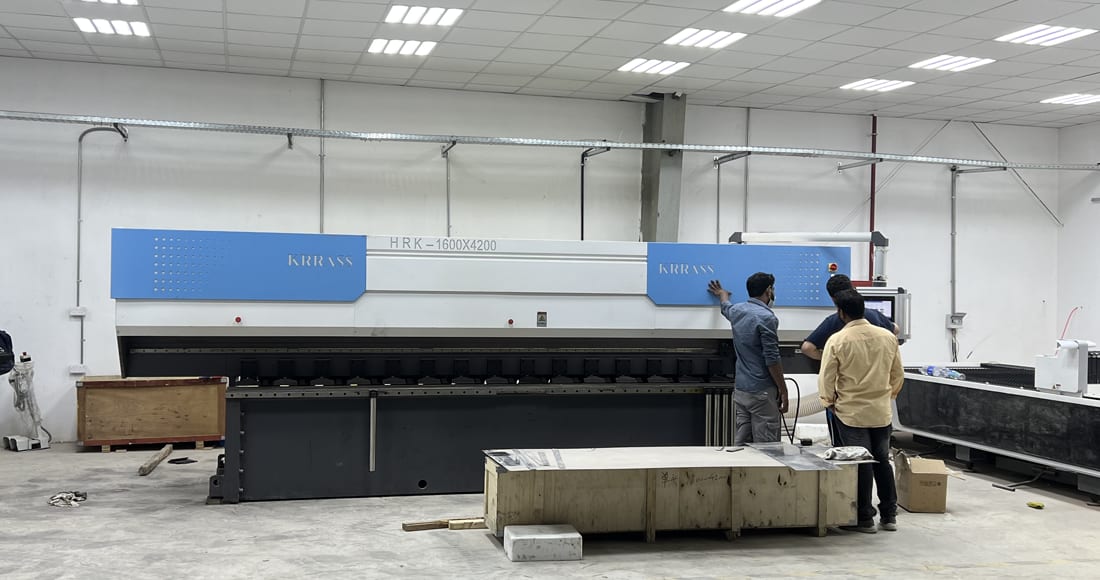

This vertical v grooving machine is equipped with 4 blades. The width of the groove is 1600mm and the length is 4200mm.

Main Technical Parameters:

14ft Vertical V Gooving Machine in saudi arabia data table

No.	Content	Required Parameter
1	Model	HRK1600-4200
2	Plate Thickness	0.4-6mm
3	Plate Length X Width	1600x4200mm
4	Grooving Speed/Speed is changeable or not	5M-70M/min ( The speed is changeable)
5	Feeding Speed	0.5-20M/min
6	Min. Setting Unit in Y-axis	0.01mm
7	Positioning Precision in Y-axis	±0.05mm
8	Min. Setting Unit in X-axis	0.01mm
9	Positioning Precision in X-axis	±0.05mm
10	Min. Setting Unit in Z-axis	0.01mm
11	Positioning Precision in Z-axis	±0.02mm
12	X-axis Motor Power	4.5KW
13	Y-axis Motor Power	2KW
14	Z-axis Motor Power	0.4KW
15	Workbench Planeness	±0.01mm
16	Feeding Way	Back feeding
17	Workbench is replaceable or not	Replaceable ( Exchangeable as well )
18	Workbench is quenched or not	Yes
19	Number of Cutter	4 PCS
20	Max. Depth for one-time Grooving	1.0mm
21	Max. Grooving Depth	3.0mm
22	Outline Dimension	5800*3250*2100mm
23	Weight	11600kg

Main Configuration of the machine:

14ft Vertical V Gooving Machine in saudi arabia data table

No.	Name	Manufacturer Name
1	CNC Controller	Mitsubishi – Japan
2	Servo Motor	Easycat – Taiwan
3	Servo Drive	Easycat – Taiwan
4	Speed Reducer	AMD- Taiwan
5	High-precise Ball Screw	AMD- Taiwan
6	High-precise Linear Guide Rail	HIWIN – Taiwan
7	Touching Ball Bearing	NSK – Japan
8	Grooving Cutter	SECO – Sweden
9	Electrical Element	Schneider – France
10	Power Cable	IGUS – Germany
11	Rack	YYC – Taiwan
12	Gear	YYC – Taiwan

Overall, a vertical V-grooving machine is a versatile and powerful tool that allows craftsmen to create precise and attractive V-shaped grooves in various materials.
