Lean, green, simple machine!

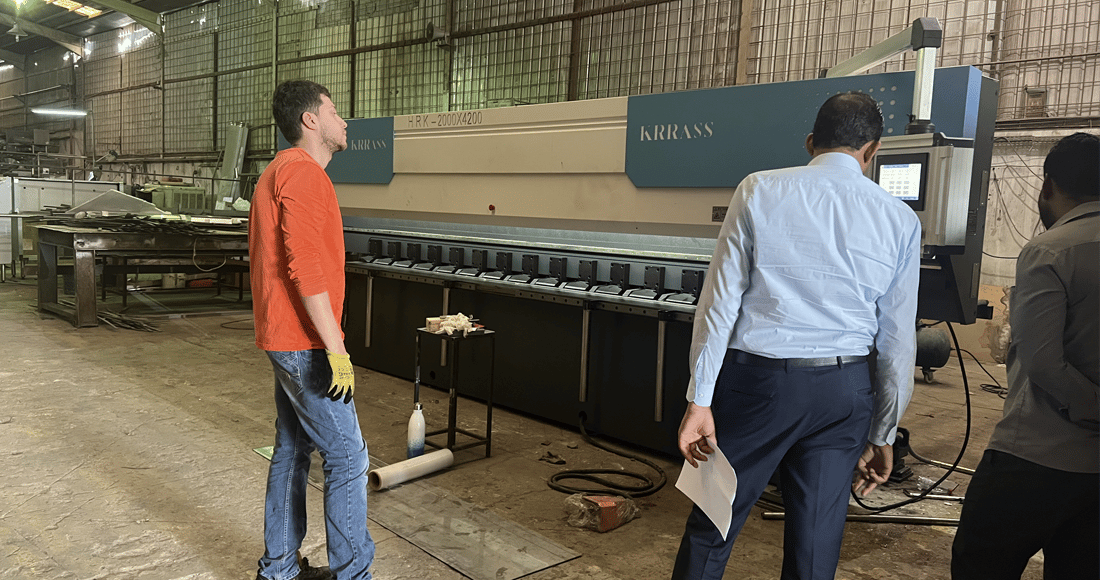

Our team at KRRASS is honored to be chosen as a partner for a furniture manufacturer in Riyadh, Saudi Arabia, to help meet and exceed their precision forming/cutting needs. This machine brings incredible productivity to our customers!
intelligence.
Performance.
upscale.
There’s no better partner, than KRRASS!

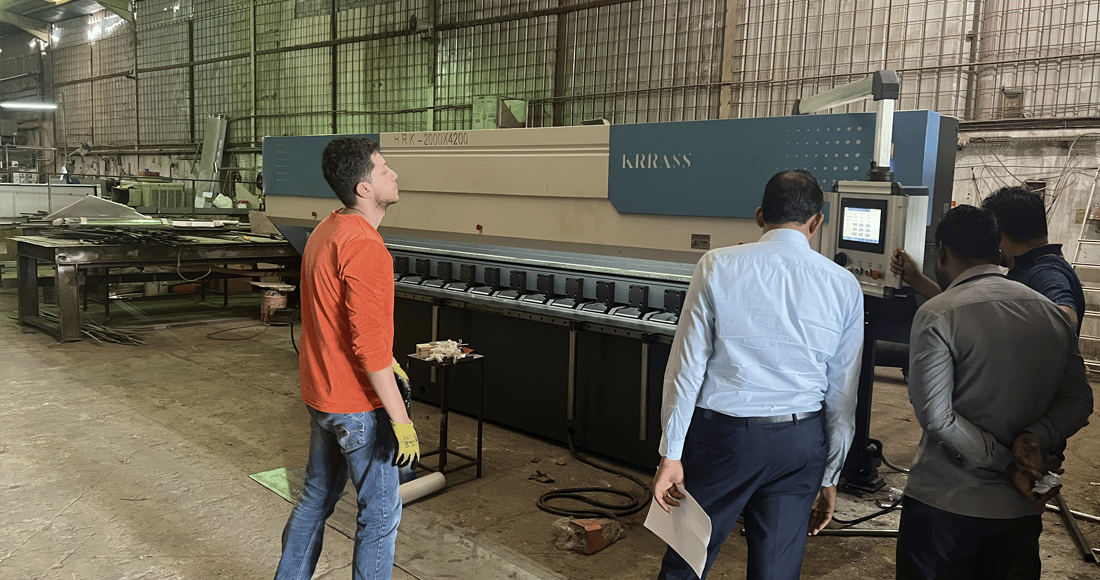

This vertical v grooving machine is equipped with 4 blades. The width of the groove is 2000mm and the length is 4200mm.
Main Technical Parameters:
| No. | Content | Required Parameter |
|---|---|---|
| 1 | Model | HRK2000-4000 |
| 2 | Plate Thickness | 0.4-6mm |
| 3 | Plate Length X Width | 2000x4000mm |
| 4 | Grooving Speed/Speed is changeable or not | 5M-70M/min ( The speed is changeable) |
| 5 | Feeding Speed | 0.5-20M/min |
| 6 | Min. Setting Unit in Y-axis | 0.01mm |
| 7 | Positioning Precision in Y-axis | ±0.05mm |
| 8 | Min. Setting Unit in X-axis | 0.01mm |
| 9 | Positioning Precision in X-axis | ±0.05mm |
| 10 | Min. Setting Unit in Z-axis | 0.01mm |
| 11 | Positioning Precision in Z-axis | ±0.02mm |
| 12 | X-axis Motor Power | 4.5KW |
| 13 | Y-axis Motor Power | 2KW |
| 14 | Z-axis Motor Power | 0.4KW |
| 15 | Workbench Planeness | ±0.01mm |
| 16 | Feeding Way | Back feeding |
| 17 | Workbench is replaceable or not | Replaceable ( Exchangeable as well ) |
| 18 | Workbench is quenched or not | Yes |
| 19 | Number of Cutter | 4 PCS |
| 20 | Max. Depth for one-time Grooving | 1.0mm |
| 21 | Max. Grooving Depth | 3.0mm |
| 22 | Outline Dimension | 5800*3250*2100mm |
| 23 | Weight | 11600kg |
Main Configuration of the machine:
| No. | Name | Manufacturer Name |
|---|---|---|
| 1 | CNC Controller | Mitsubishi – Japan |
| 2 | Servo Motor | Easycat – Taiwan |
| 3 | Servo Drive | Easycat – Taiwan |
| 4 | Speed Reducer | AMD- Taiwan |
| 5 | High-precise Ball Screw | AMD- Taiwan |
| 6 | High-precise Linear Guide Rail | HIWIN – Taiwan |
| 7 | Touching Ball Bearing | NSK – Japan |
| 8 | Grooving Cutter | SECO – Sweden |
| 9 | Electrical Element | Schneider – France |
| 10 | Power Cable | IGUS – Germany |
| 11 | Rack | YYC – Taiwan |
| 12 | Gear | YYC – Taiwan |
This v grooving machine is equipped with a Japanese Mitsubishi controller, which is easy to operate and has high precision. Installation and use are guided on-site by our engineers. Greatly improve the performance of the machine.
