12000W Fiber Laser Cutting Machine For Metal
This enclosed 12000W fiber laser cutting machine boasts a sleek shield and a special laser-safe observation window. Its advanced smoke and dust recovery system ensures a clean, beautiful operation, making it a safe and environmentally friendly choice.
Engineering details
Configuration
Explore the key specifications, components, and available options designed to support different materials, processes, and production requirements.
Technologyies
| Working Area(mm): | 6050*2020 |
| Laser Power(kw): | 12000W |
| Maximum Speed(m/min): | 80 |
| Maximum Acceleration(g): | 0.8 |
| X/Y Axis Positioning Accuracy(mm/m): | ±0.05 |
| X/Y Axis repeated positioning accuracy(mm): | ± 0.02 |
Configurations
Table Construction & Highlights
This Fiber Laser Cutting Machine has the following features:
- 6.5ft x 13ft cut dimensions
- MAXphotonics laser source
- Frame 5/8″ welded steel tube
- Aviation grade aluminum gantry
- Blade knife table surface
- X, Y axis – stainless steel ball screw transmission
- HiWin linear high precision stainless steel guide rails & bearings
- 22,000 lbs combined table weight
- 40 ton pressed 6061 laser car gantry material

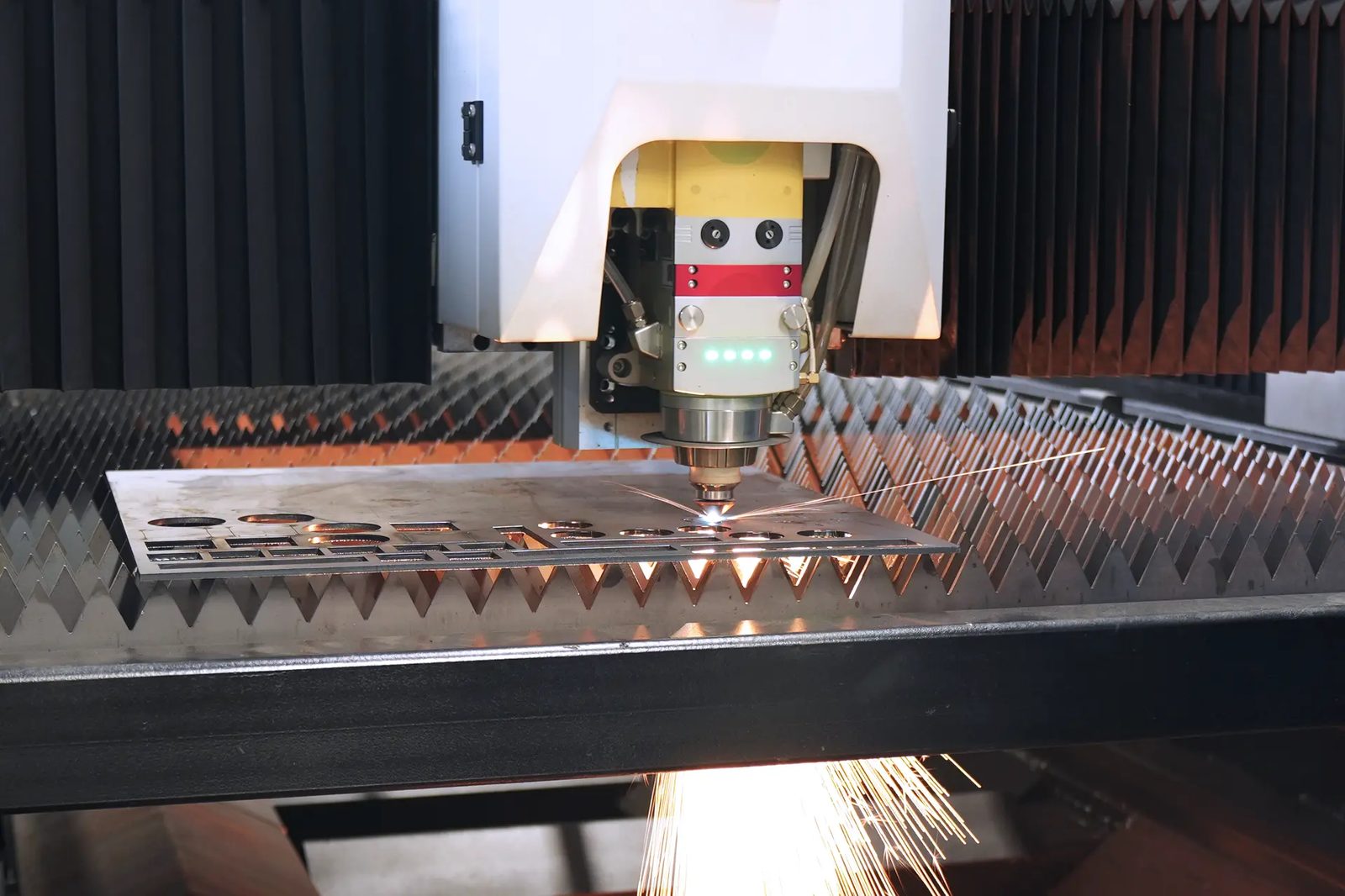

MAX photonics Laser Head
The laser cutter machine’s auto-focusing optical fiber cutting head has a built-in motor drive unit. A linear mechanism automatically drives the focus lens to change the position within the specified range. The program can set the continuous focus to complete the rapid perforation of thick plates and automatically cut plates of different thicknesses and materials.

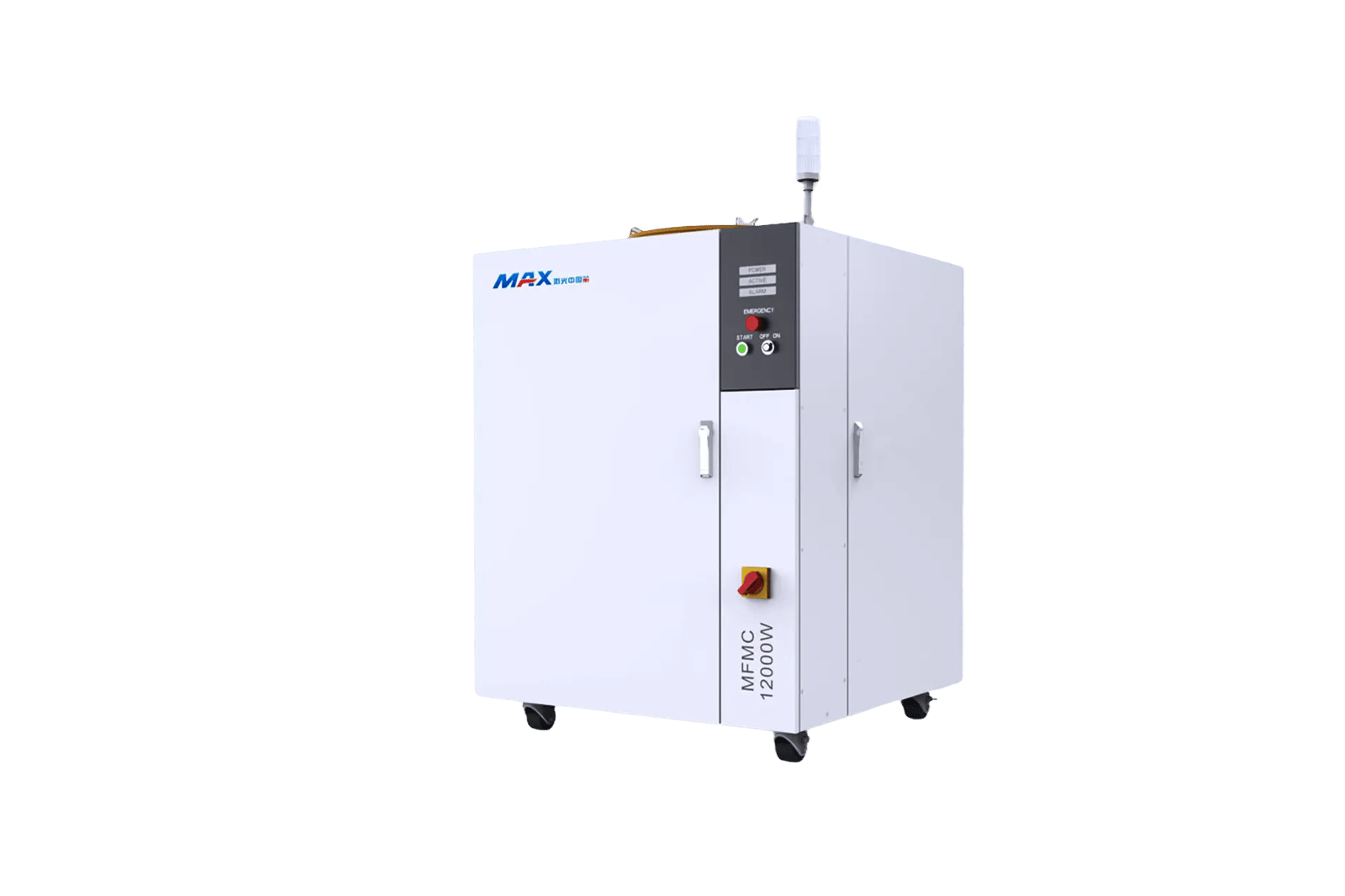

12000W MAX Fiber Laser Souce
12KW High Power Fiber Laser Souce adopt water cooling and modular design.The compact design, highly-integrated system, free of maintenance, high reliability, high beam quality and high beam stability are the ideal laser source for laser cutting, laser welding,laser cladding, surface heat treatment,etc.

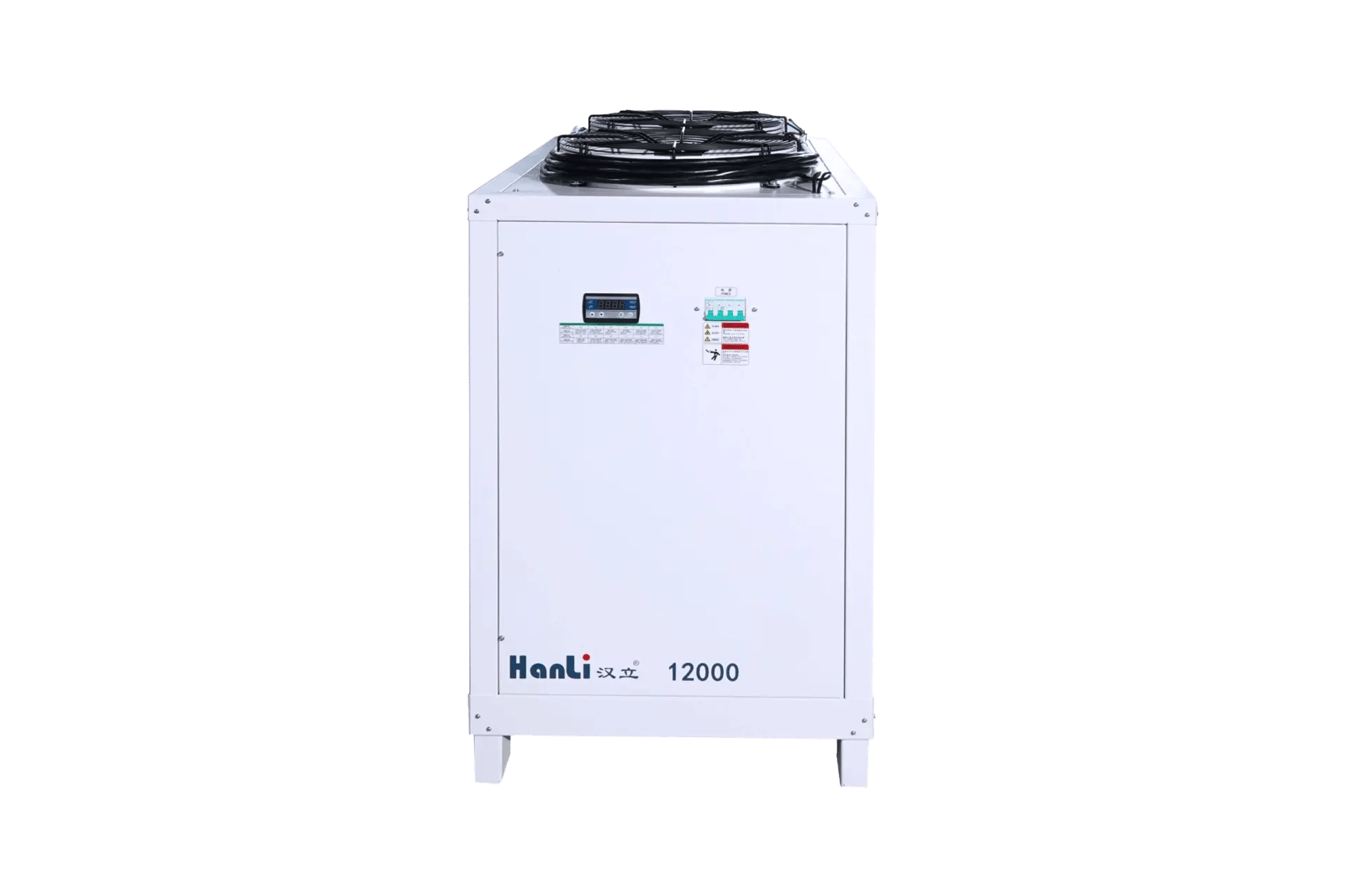

12KW Fiber Laser Cutting Machine Chiller
Specially designed for fiber laser equipment, compatible with various brands of lasers; supports a full range of environmentally friendly refrigerants; laboratory verification, quality assurance; stable and reliable performance, low failure rate, energy saving.

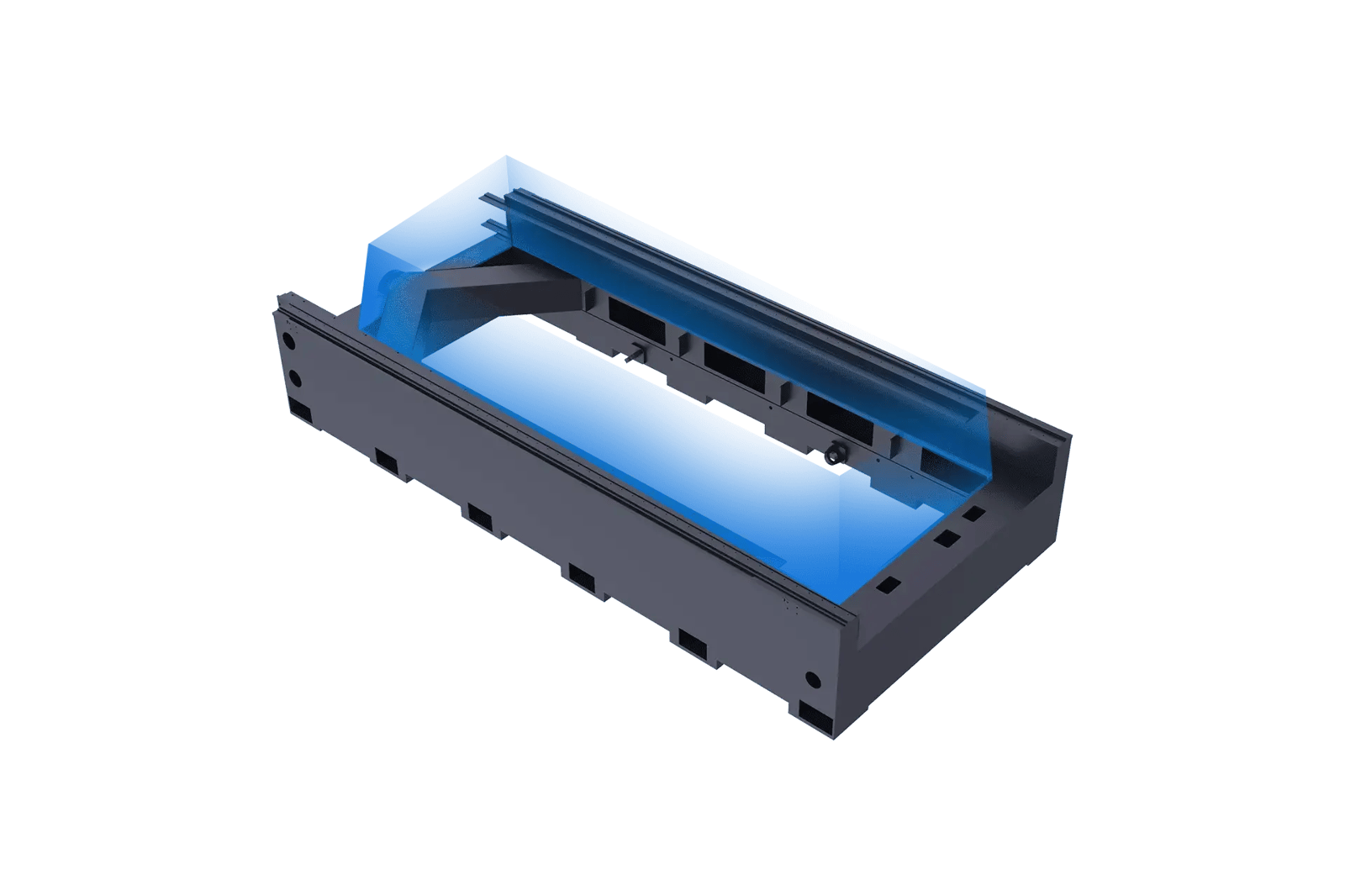

Heavy-load Thermal Isolated Hollow Bed
The heavy-duty heat-insulating hollow bed of the metal laser cutting machine is welded with high-quality steel plates and pipes. After welding, stress relief annealing, secondary aging treatment, and precision machining, super-large gantry milling machines ensure that the bed has sufficient structural stability and shock resistance. The mattress will not deform after long-term use, which improves the service life of the equipment.

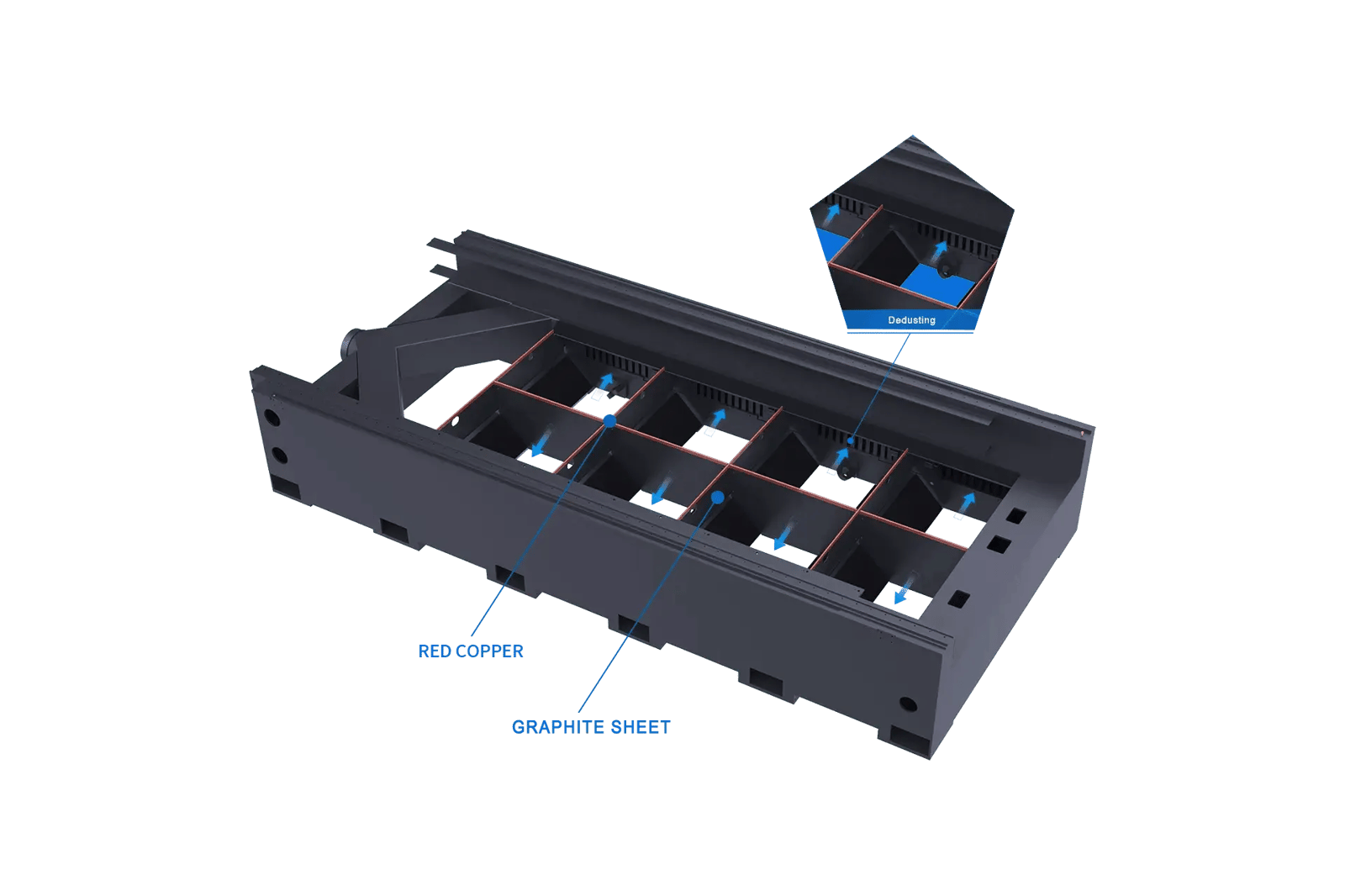

Intelligent Spiral Vacuum Dust Removal
Intelligent spiral vacuum dust removal is a time-sharing system with an automatic air outlet switch and sectional air exhaust. It can cooperate with the back-shaped sealing structure design at the bottom of the base to realize smokeless cutting.8kw or higher power machine has graphite and copper protection.

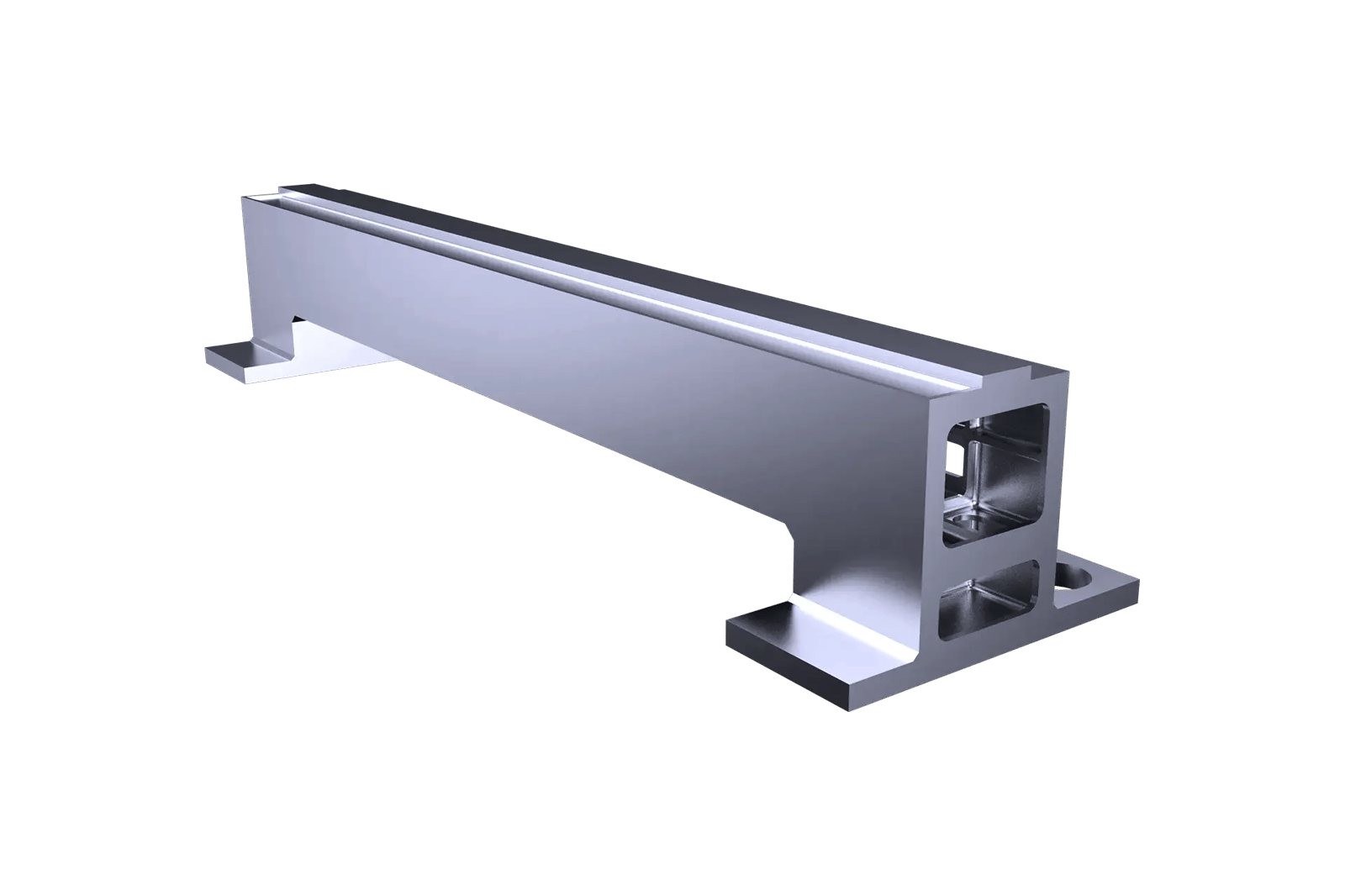

The Fifth-generation Aviation Aluminum Alloy Beam
The T6 heat treatment process processes the full beam of the laser metal cutting machine to make the shaft obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.
Cypcut Intelligent Control System
“CypCut plane cutting” software is a set of software specially developed for the deep customization of the laser cutter machine industry. Easy to use, rich in functions, and suitable for various processing occasions.

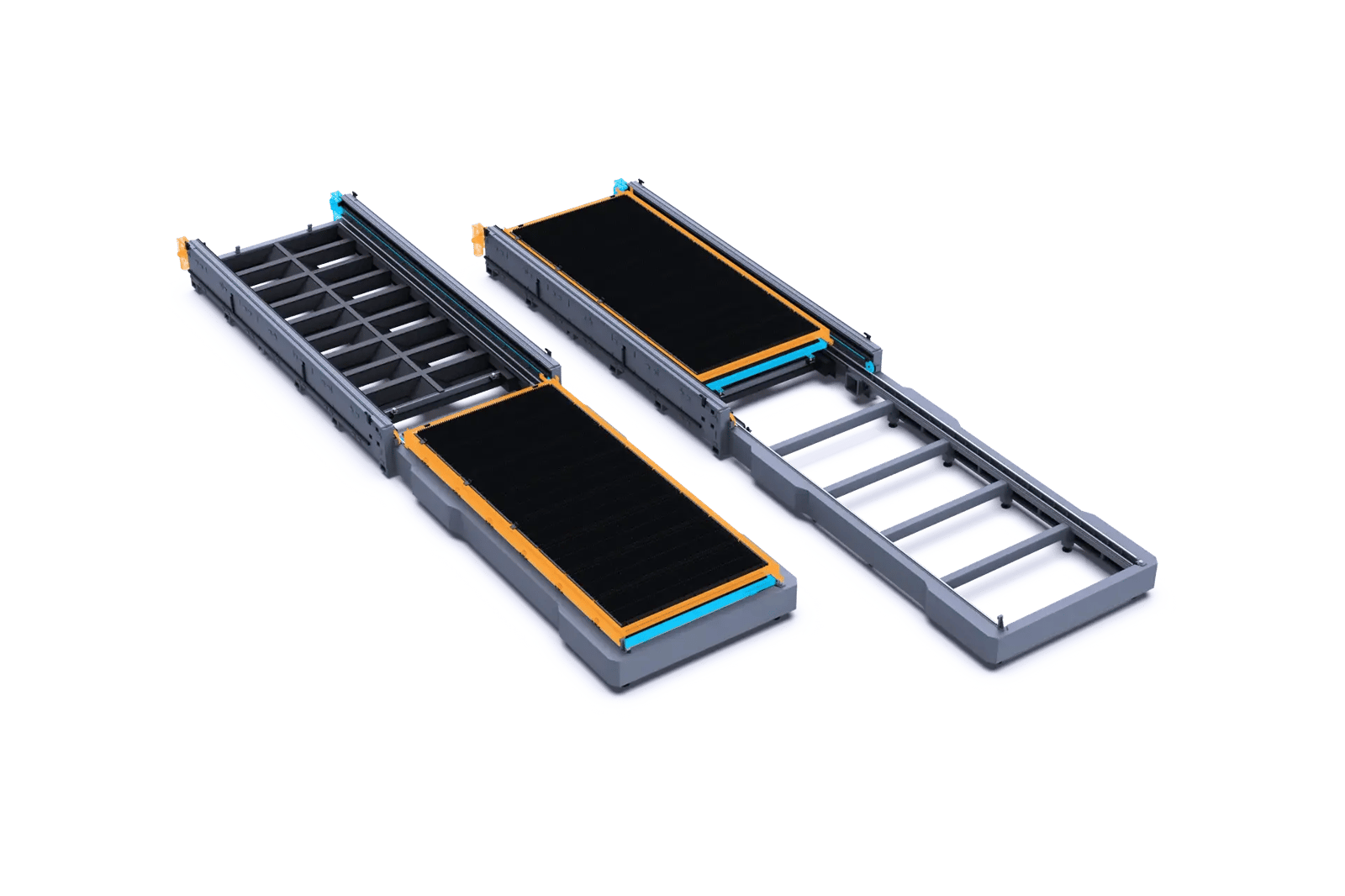

Parallel Shuttle Table
The laser cutting machine is equipped with a six-sided steel track, the pulley and the track are inlaid tightly, powerful pneumatic tightening, and the built-in pulley runs smoothly. The fastest can achieve a complete exchange in 10s.

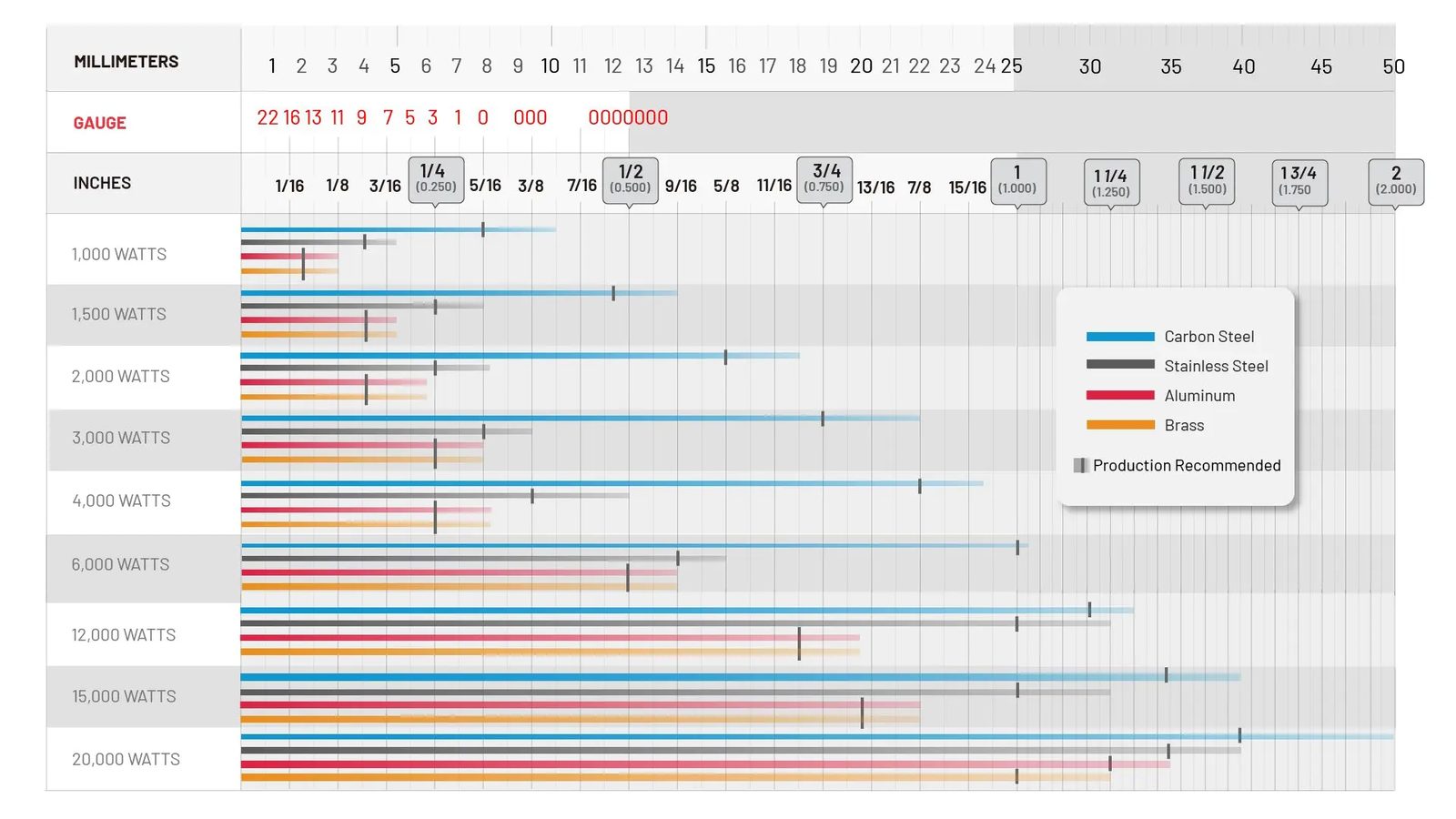

You Choose The Power of The Laser
What is this Machine Used for?
