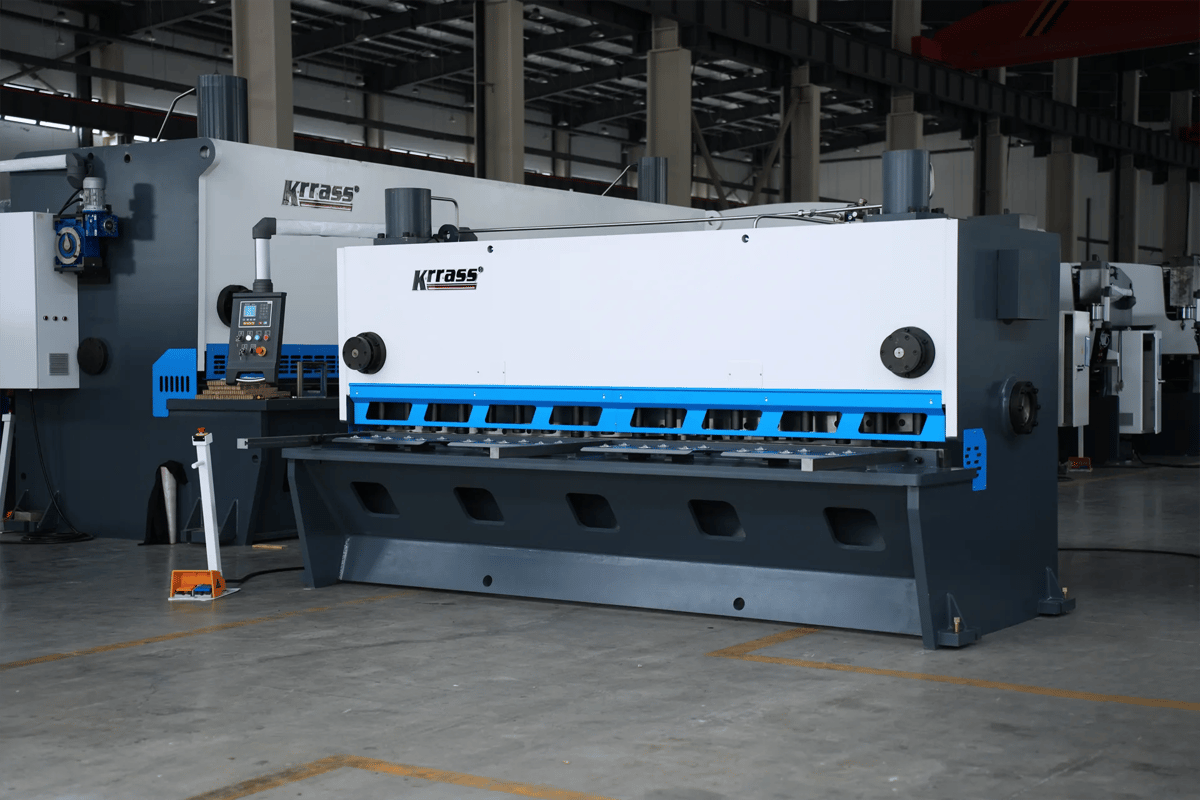

QC11K-12X3200 Hydraulic Guillotine Shearing Machine
QC11K-12X3200 Hydraulic Guillotine Shearing Machine, 12mm Guillotine Shearing Machine, 3.2 Metal Cutting Machine
Engineering details
Configuration
Explore the key specifications, components, and available options designed to support different materials, processes, and production requirements.
Technologyies
| Max Cutting Thickness: | 12mm |
| Max Cutting Length: | 3200mm |
| Main Motor: | 18.5KW |
| Operating Voltage: | 380V 50Hz |
| CNC System: | E21S |
| Length * Width * Height: | 3855mm * 1830mm * 2390mm |
Configurations
Main Feature
The Hydraulic Guillotine Shearing Machine, precise and high-quality cutting with automatic gap adjustment, excellent cutting, and perfect speed. KRRASS QC11K Hydraulic Guillotine Shears can cut metal sheets to maintain the highest production capacity with maximum precision and quality.

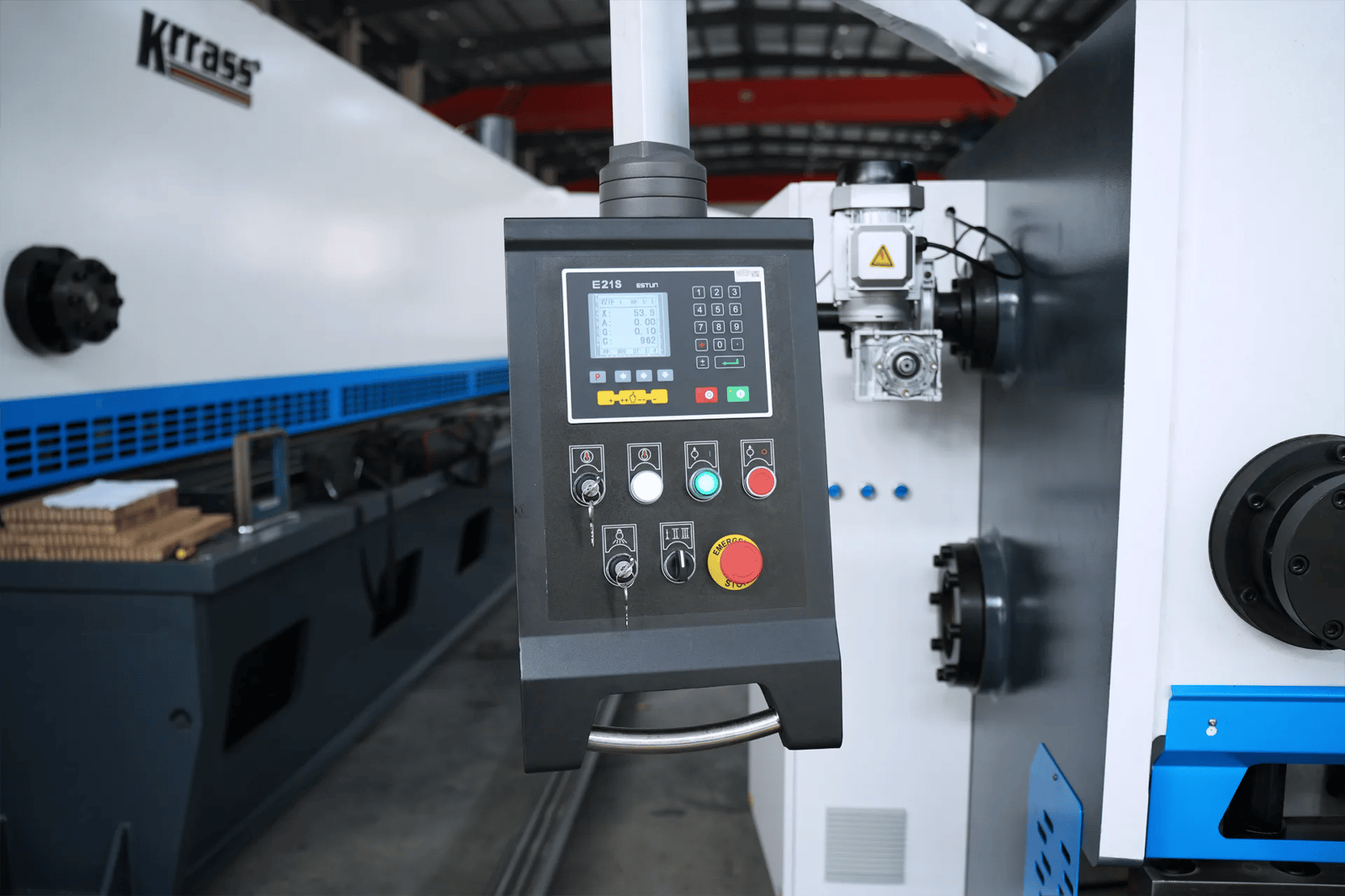

ESTUN E21S Control
- High-definition hydraulic display
- Control common motors and frequency converters
- X-axis intelligent positioning
- Multi-step programming, 40 programs, each program 25 steps
- Built-in time relay function
- One-button function switching
- Unilateral positioning function
- A key backup and restore of parameters
- Chinese and English
- Metric system

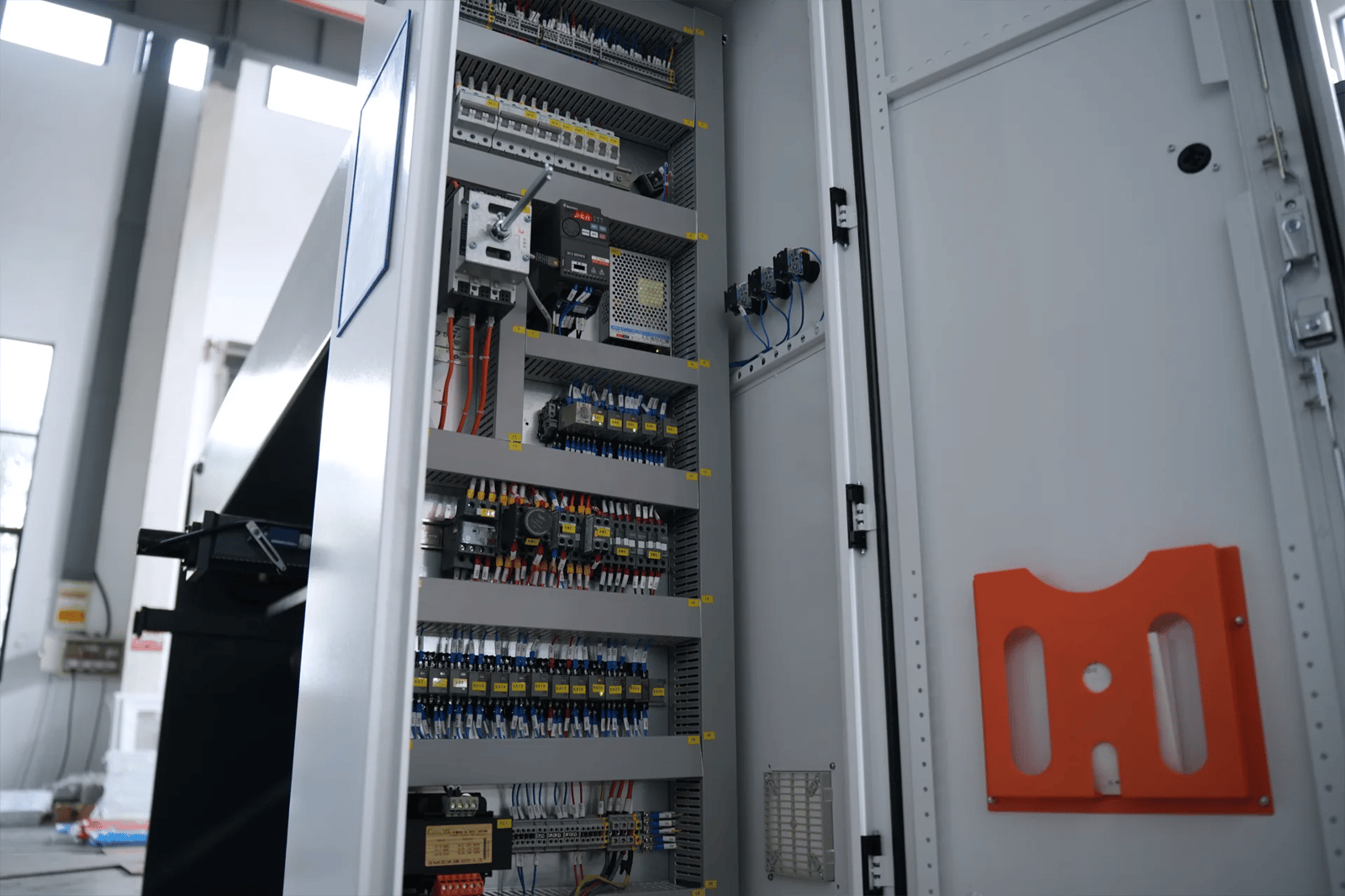

Schneider Electric
High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

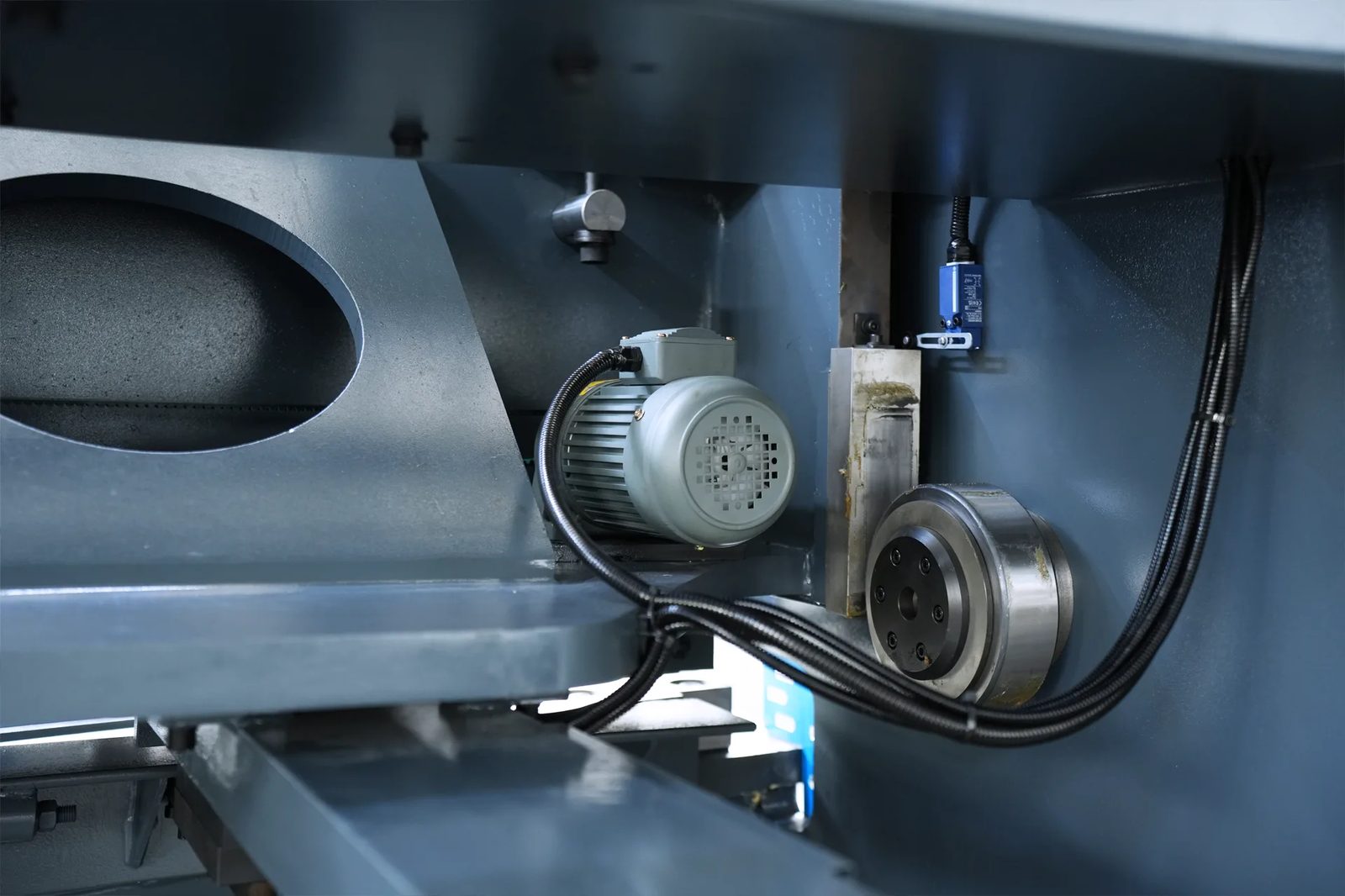

X-axis Motor
The X-axis back gauge is controlled by the E21S controller, which controls the stepper motor to move forward and backward. It has fast response speed and high moving accuracy.

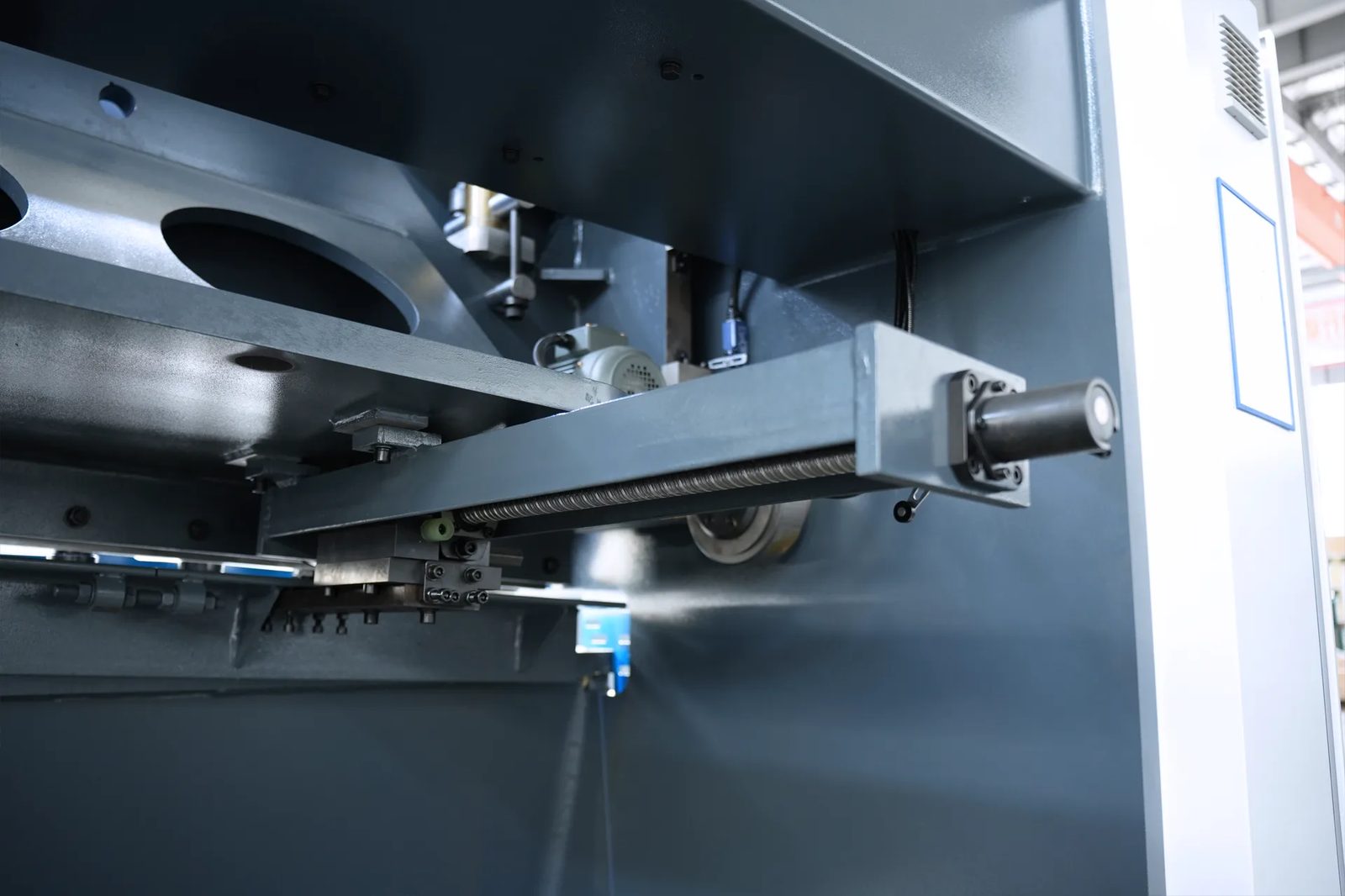

X-axis Screw
The lead screw that controls the forward and backward movement of the X-axis back gauge is of SACH brand, with long service life and high precision.

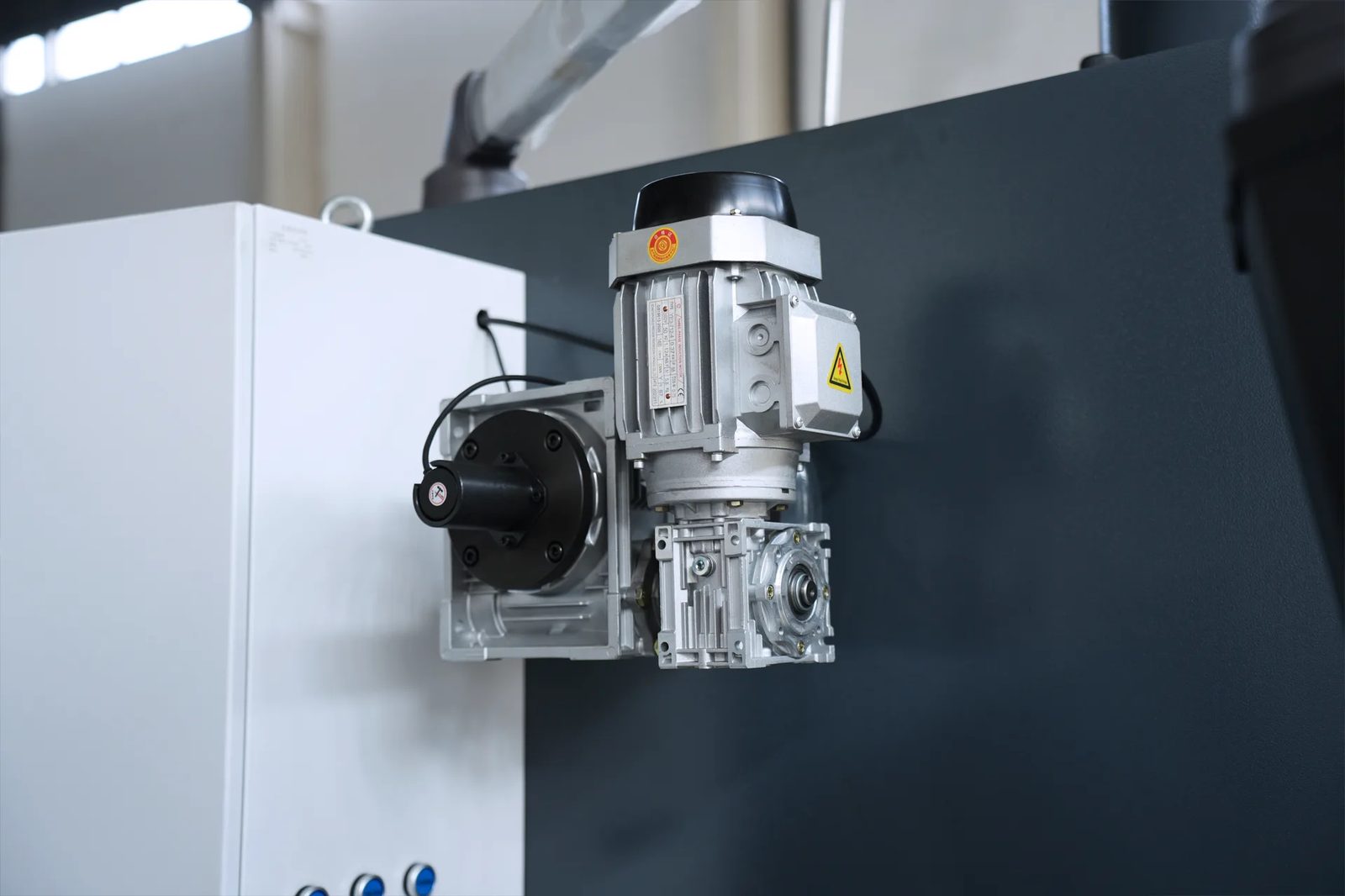

Blade Clearance Adiustment
Adjust the cutting blades gap by moto!according the cutting thickness of themetal sheet can get better cutting performance.

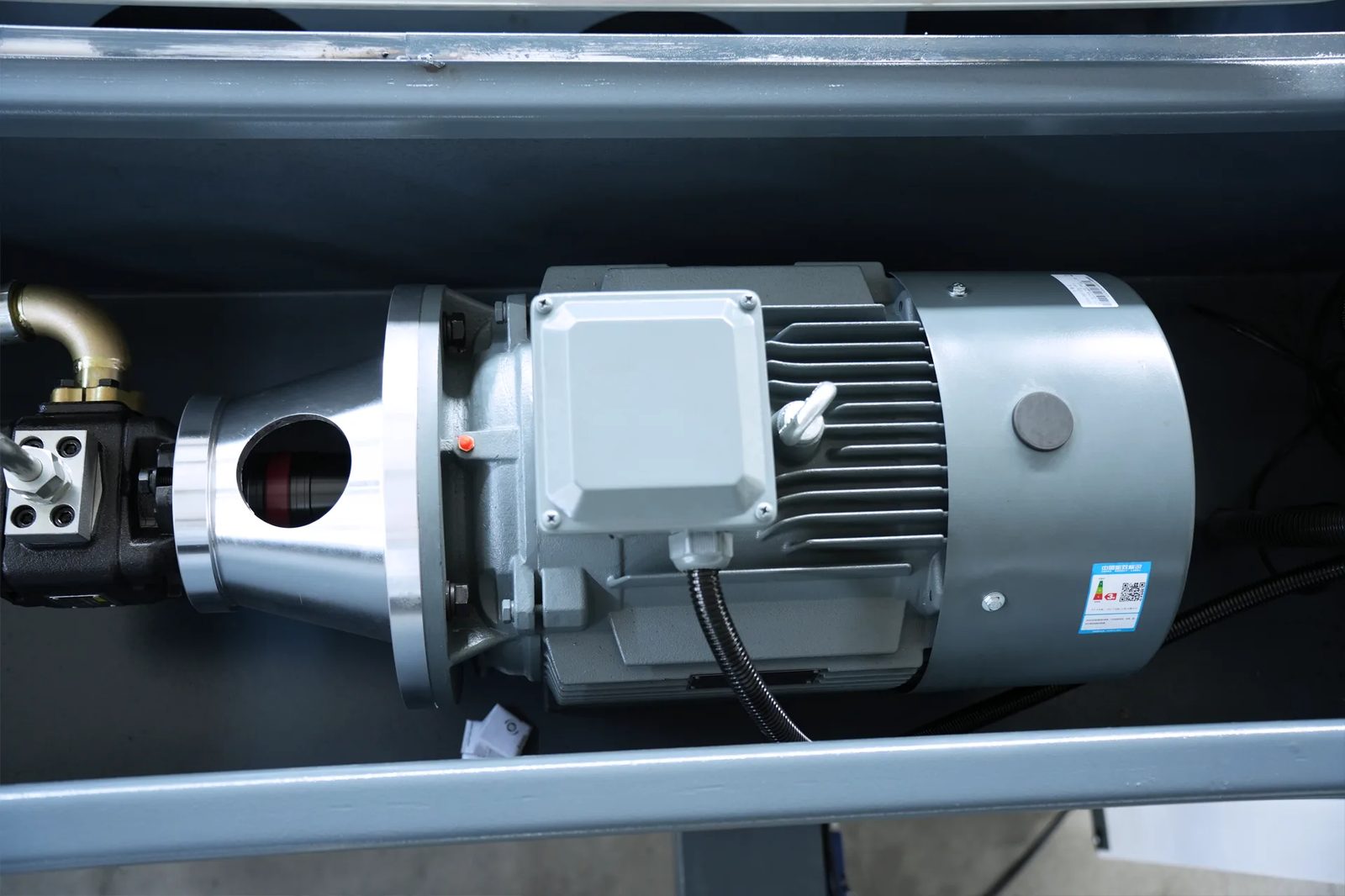

German Siemens Main Motor
The German famous brand motor increases the service life of the Hydraulic Guillotine Shearing Machine and keeps the machine working in a low-noise environment.

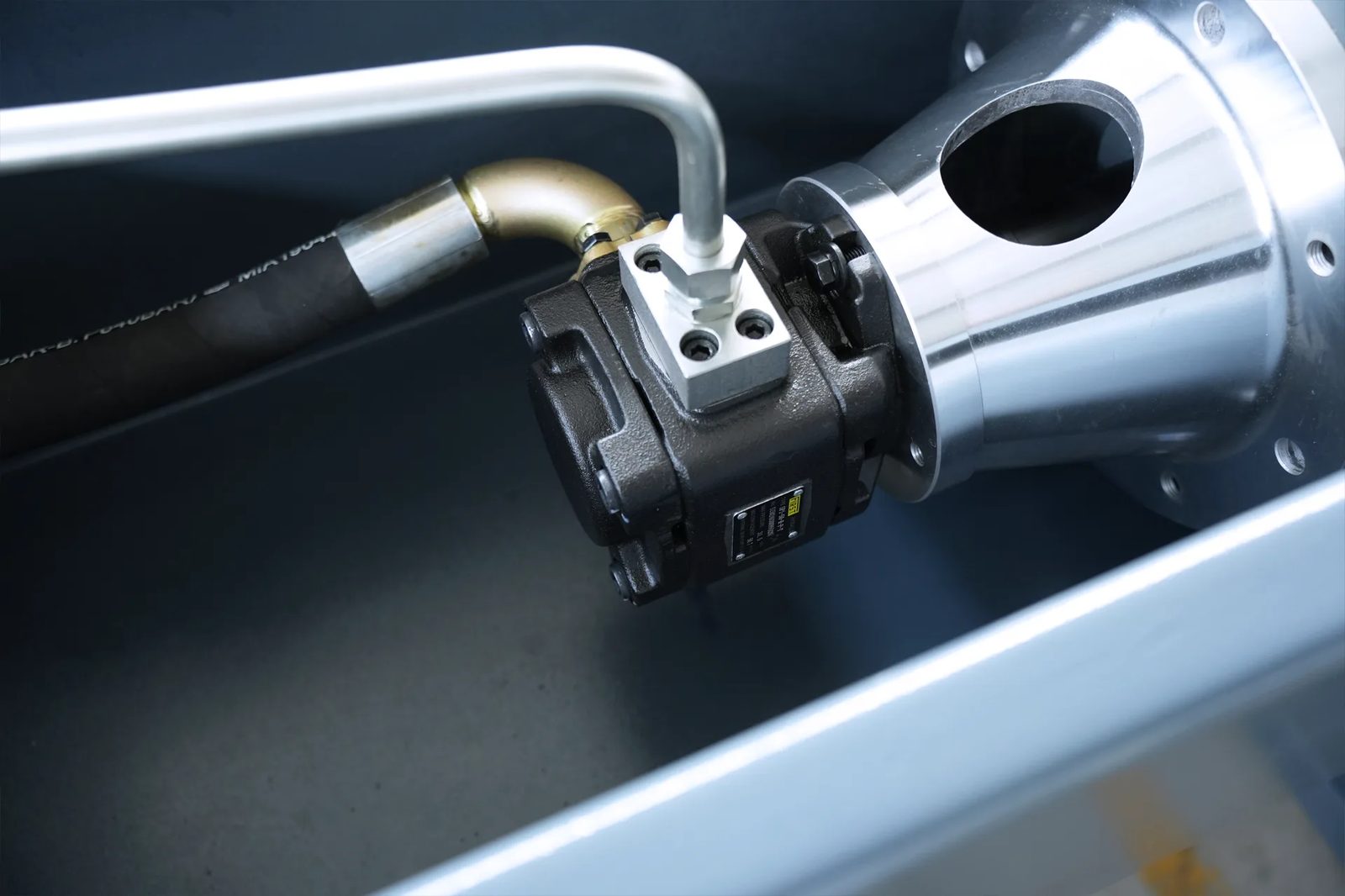

FIRST Hydraulic Oil Pump
The oil pump is highly regarded for its exceptional performance, known for its quiet operation and remarkable longevity, making it a reliable choice for various applications.

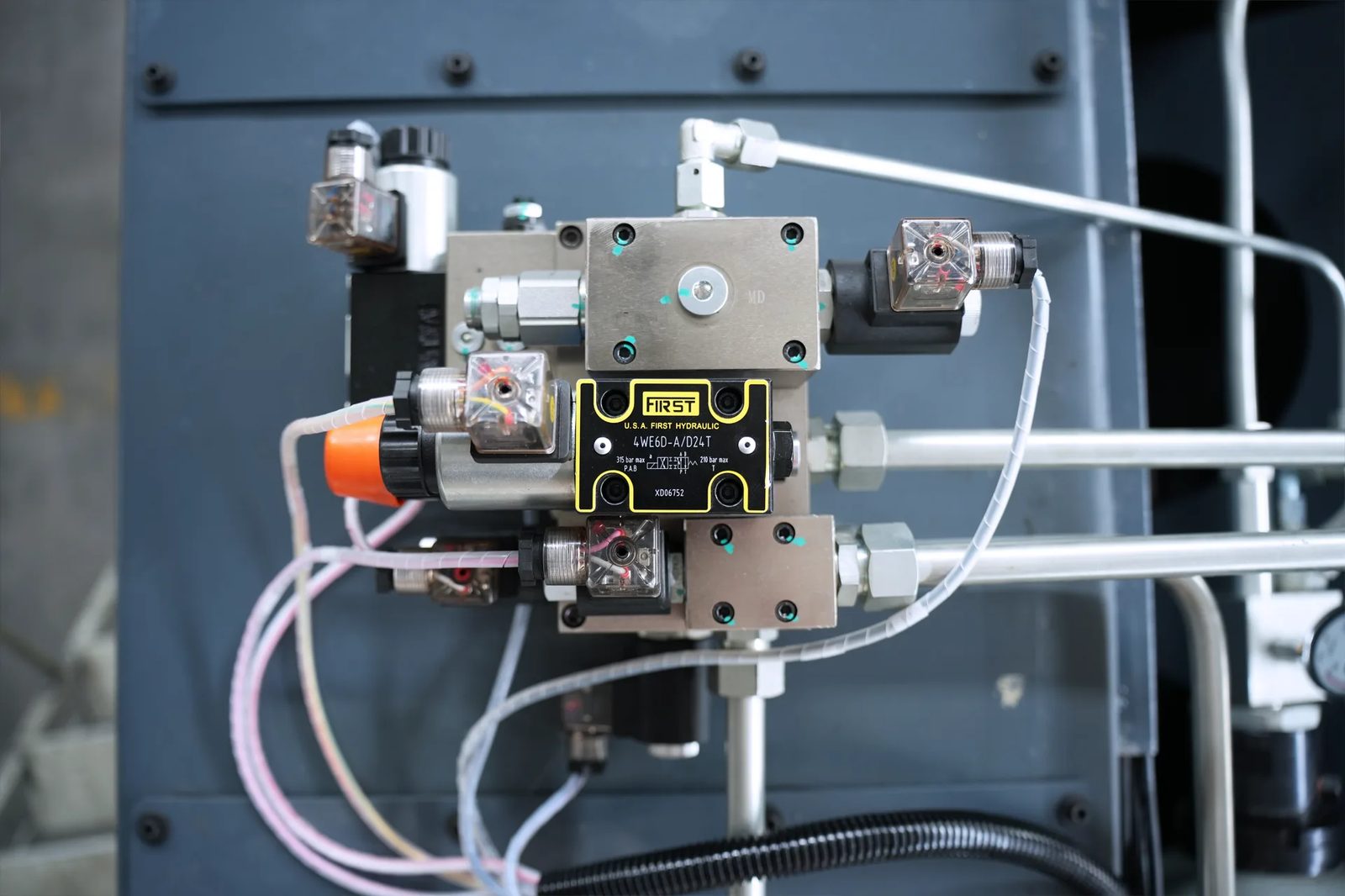

FIRST Hydraulic Valve
The world famous brand FIRST, Is a professional hydraulic valve supplier.
The EMB oil pipe joint has a beautiful structure and reduces the possibility of oil leakage.

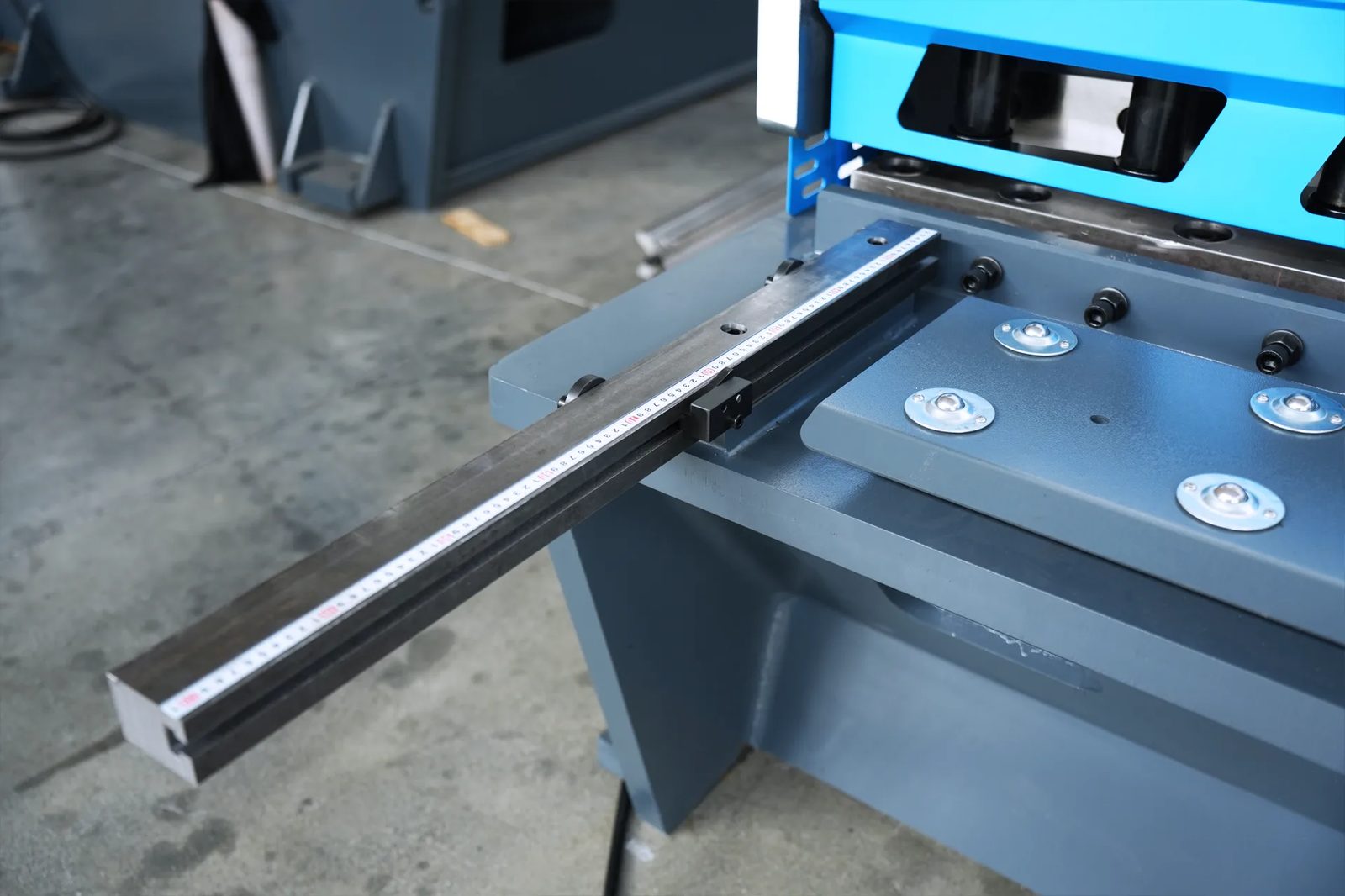

Front Material Support
The front material rack can effectively help you reduce the work pressure when you are cutting larger metal sheets, making it easier for you to support and move the sheets.

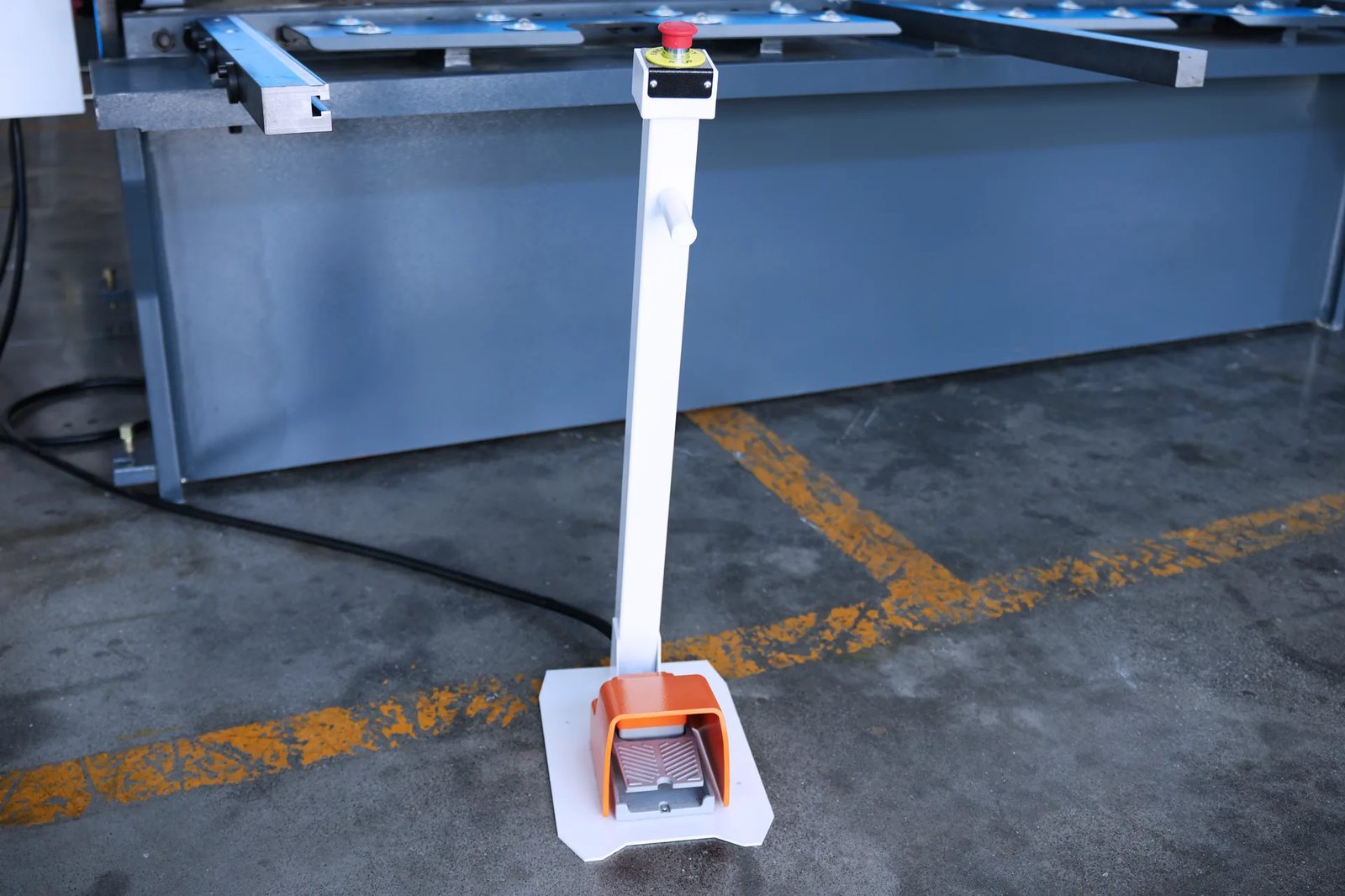

South Korea KACON Foot Switch
South Korea brand foot switch is movableand can stop the Hydraulic Guillotine Shearing Machine anytime by theemergency button.

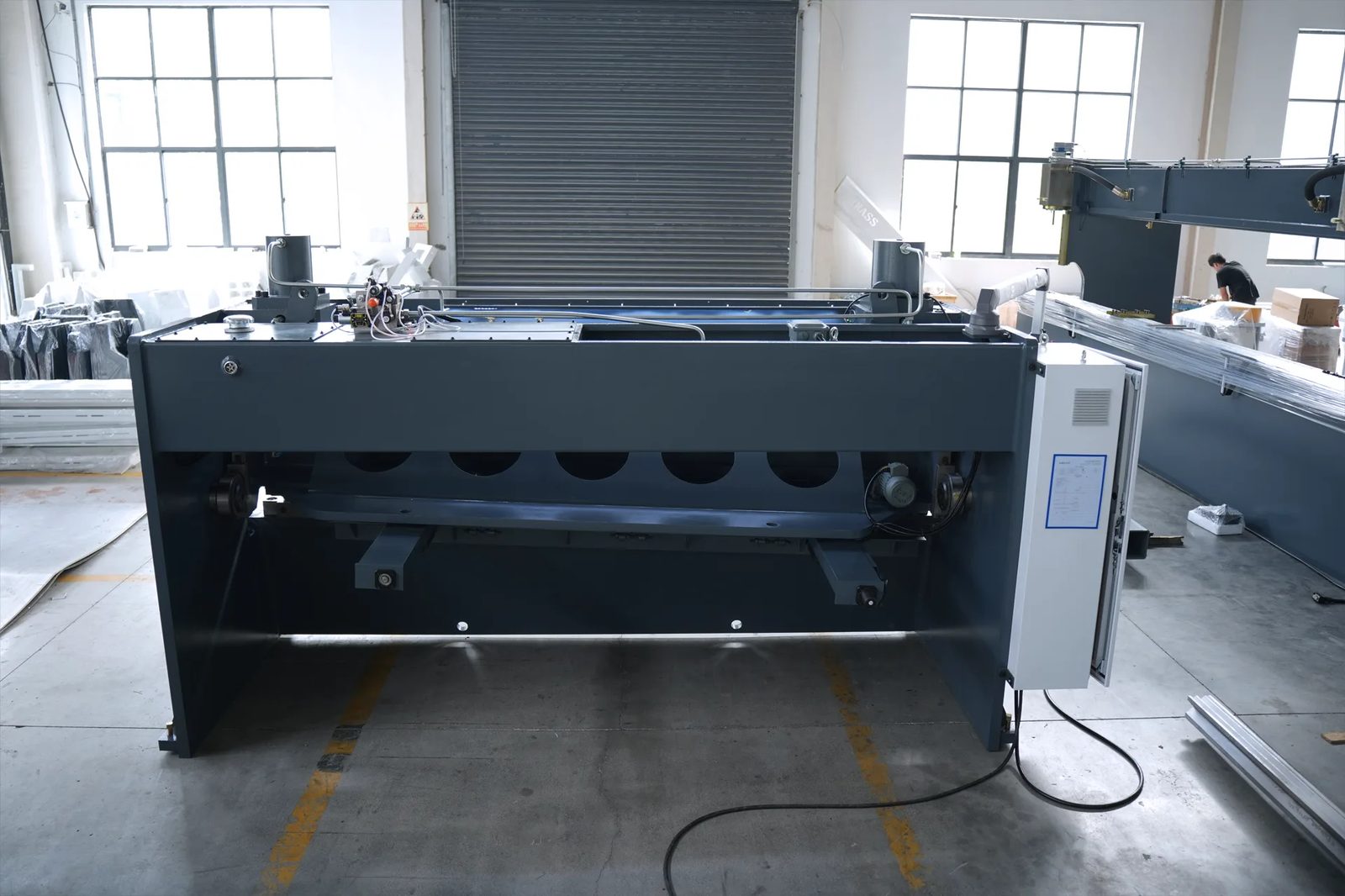

Back Of The Fuselage
The whole of the Hydraulic Guillotine Shearing Machine has a clean and neat structure design, regular lines and is easy to operate, making it an ideal choice for cutting metal sheets.
