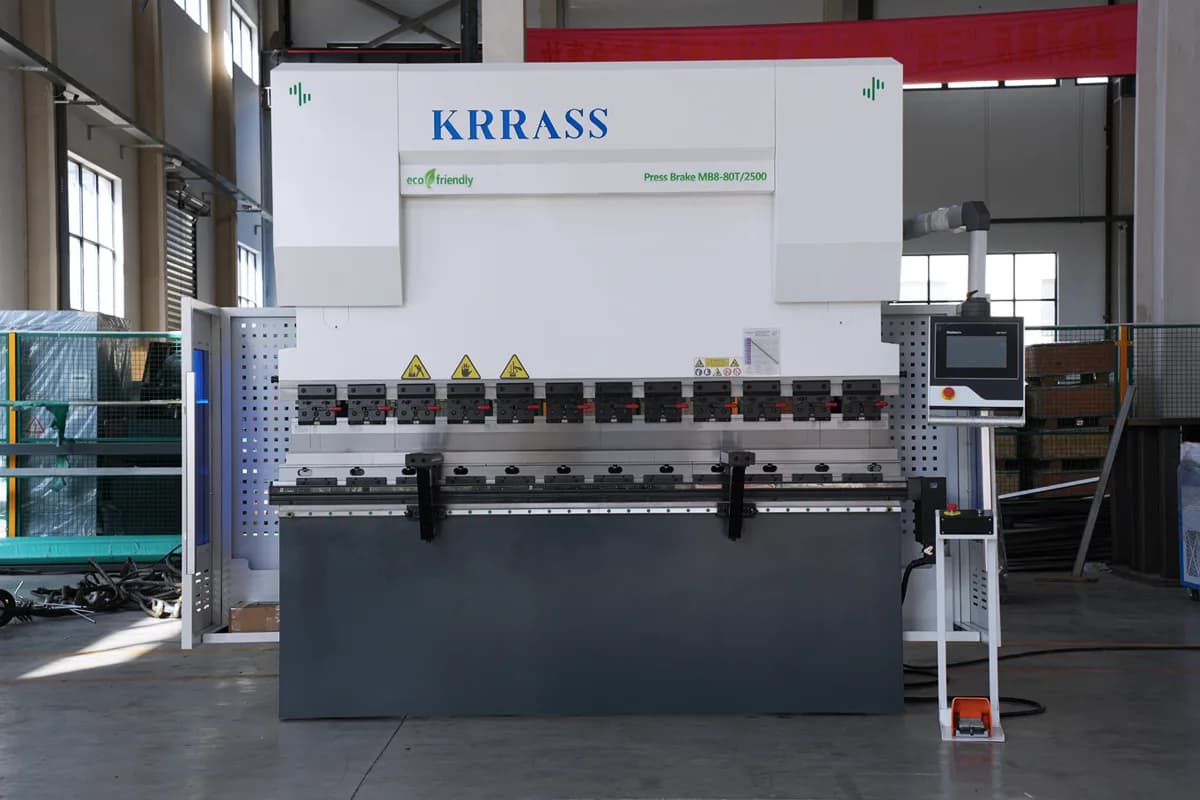

CNC Press Brake Machine, 80Ton Sheet Metal Press Brake, DELEM DA53T Controller
80Ton CNC Press Brake Machine, 2500mm Sheet Metal Press Brakes Price, Equipped with Dutch DELEM DA53T controller, 5 Axis Press Brake.
Engineering details
Configuration
Explore the key specifications, components, and available options designed to support different materials, processes, and production requirements.
Technologyies
| Bending Pressure: | 800KN |
| Bending Length: | 2500mm |
| CNC Control Axes: | Y1+Y2+X+R+W Crowning |
| Main Motor: | 7.5KW |
| Operating Voltage: | 380V 50Hz |
| CNC System: | DA-53T |
| Length* Width* Height: | 3220mm * 1780mm * 2650mm |
Configurations

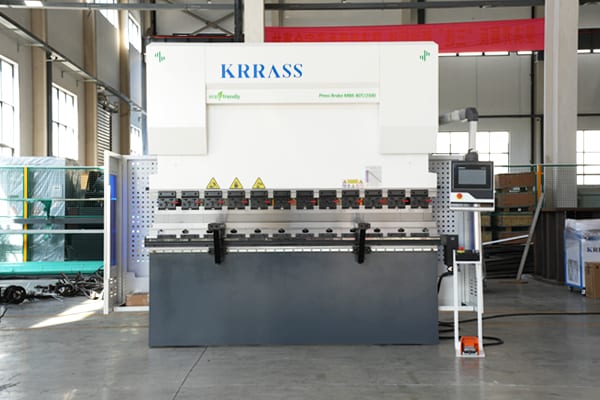

Main Feature of the 80Ton CNC Press Brake
The 80Ton CNC Press Brake with DA-53T Controller with its easy-to-use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.
- Simple and solid the 80Ton CNC Press Brake
- Work area can be customized and all types of tool clamping can be installed
- Tailored-made 80Ton CNC Press Brake

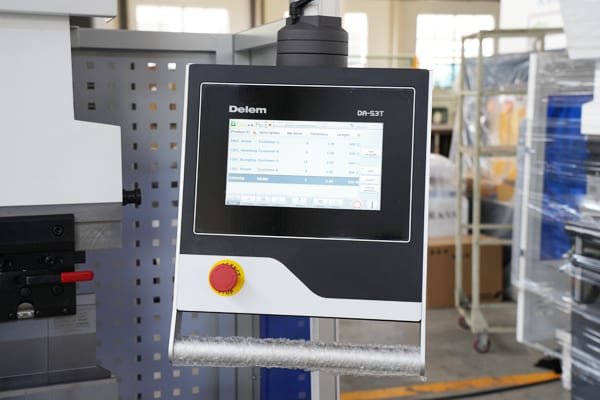

DELEM DA-53T Control
- 10.1″ high resolution colour TFT
- “Hot-key” touch navigation
- Up to 4 axes (Y1,Y2 + 2 aux. axes)
- Tool / material / product library
- Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
- CNC Crowning control
- USB memory stick interfacing
- Profile-53TL offline software
Electric Crowning System
- Very precise bending angles
- Europe type dies with 60 mm and 90 mm
- Base can be clamped as well as single dies with 13 mm tang
- Electric crowning with a controller
- Precise positioning and alignment of the crowning table
- Easy and fast usage

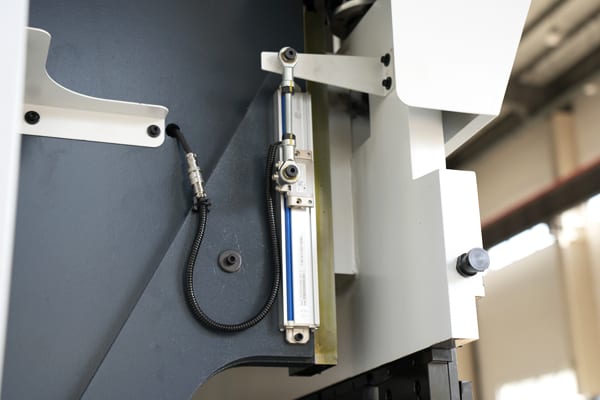

Fagor Grating Ruler
Slider position signal is feedbacked to controller by Spain FAGOR Grating ruler , then the CNC controller adjusts the amount of fuel tank by changing the synchronous valve opening size.

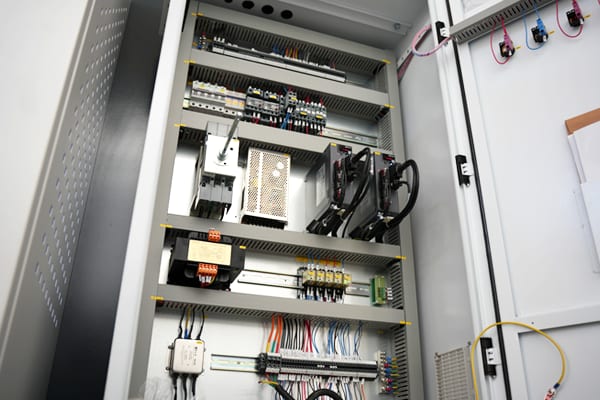

Schneider Electric
High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

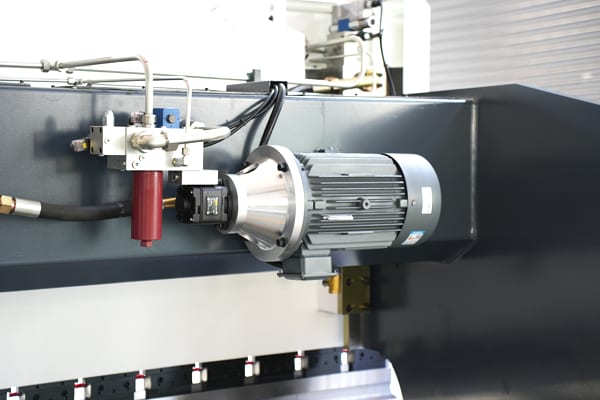

German Siemens Main Motor
The German famous brand motor increases the service life of the 80Ton CNC Press Brake and keeps the 80Ton CNC Press Brake working in a low-noise environment.

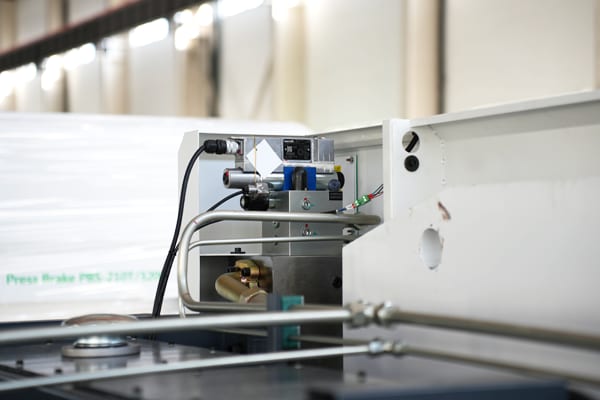

Rexroth Proportional Valve
The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the 80Ton CNC Press Brake tool has high stability and high precision in the process of high-speed operation.

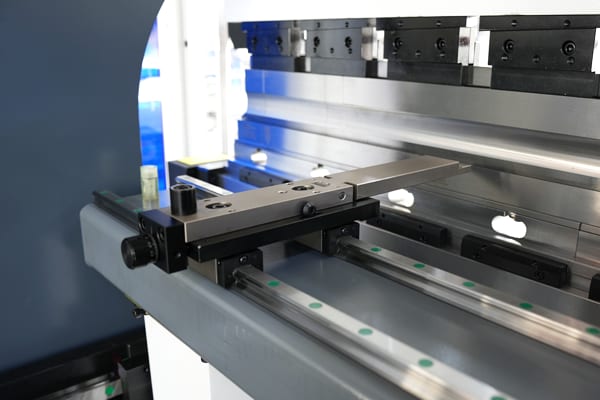

Sheet Metal Press Brake 2-Axis CNC BackGauge with X, R-Axis
- Hiwin Ball screws and linear guide on X, R-axis
- Axis X speed 500 mm/s
- Manual Z1, Z2-axis with HIWIN linear guide
- Mechanical accuracy ± 0.01 mm
- Fingers with double stop and micrometric adjustment

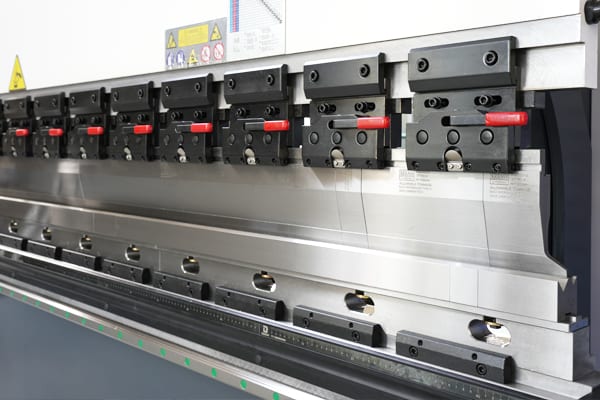

High-precision Quick Mold Change Device
The upper mold is divided into different gold sizes and can also be cut according to customer requirements.
The lower mold adopts a Single-V concentric mold, which can adapt to customers’ bending of materials with different thicknesses. The mold can also be modified according to customer requirements. To meet the best needs of customers.

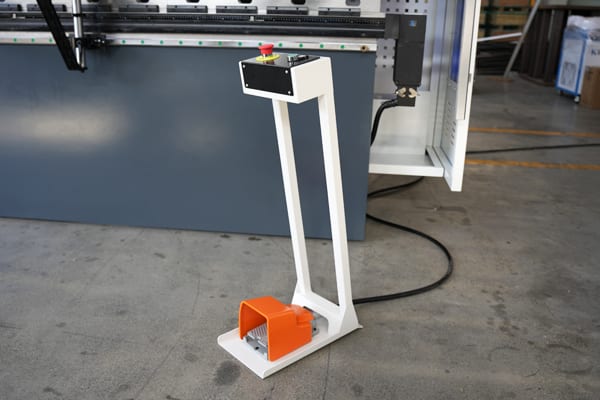

South Korea KACON Foot Switch
South Korea brand foot switch is movableand can stop the 80Ton CNC Press Brake anytime by theemergency button.

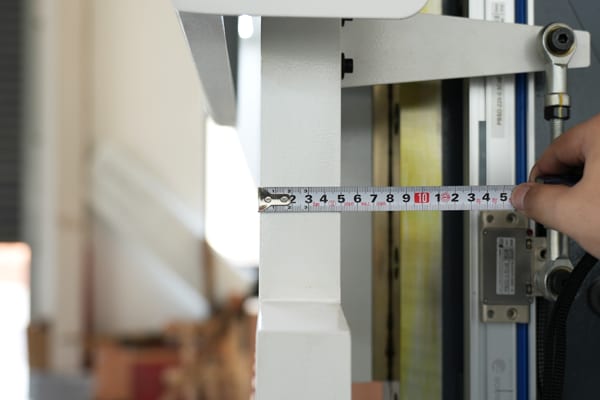

Thickness of workbench (70mm)

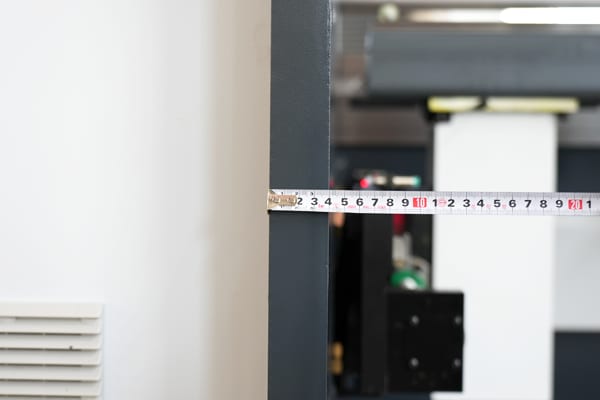

Thickness of side panel (40mm)

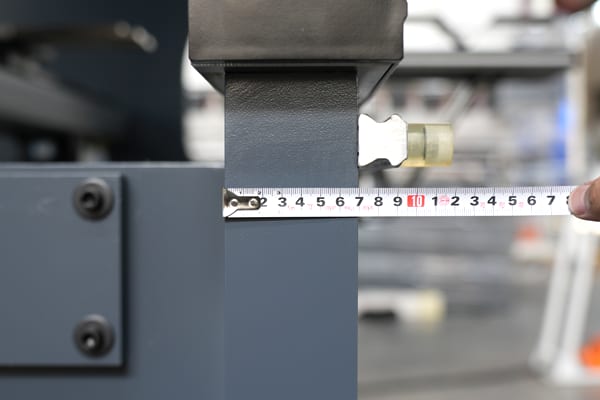

Thickness of slider (50mm)
Tooling (Optional)
Standard tooling
Non-Standard tooling
Gooseneck tooling
Double-V Concentric Mold
Four-V Concentric Mold
Multi-V Mold
