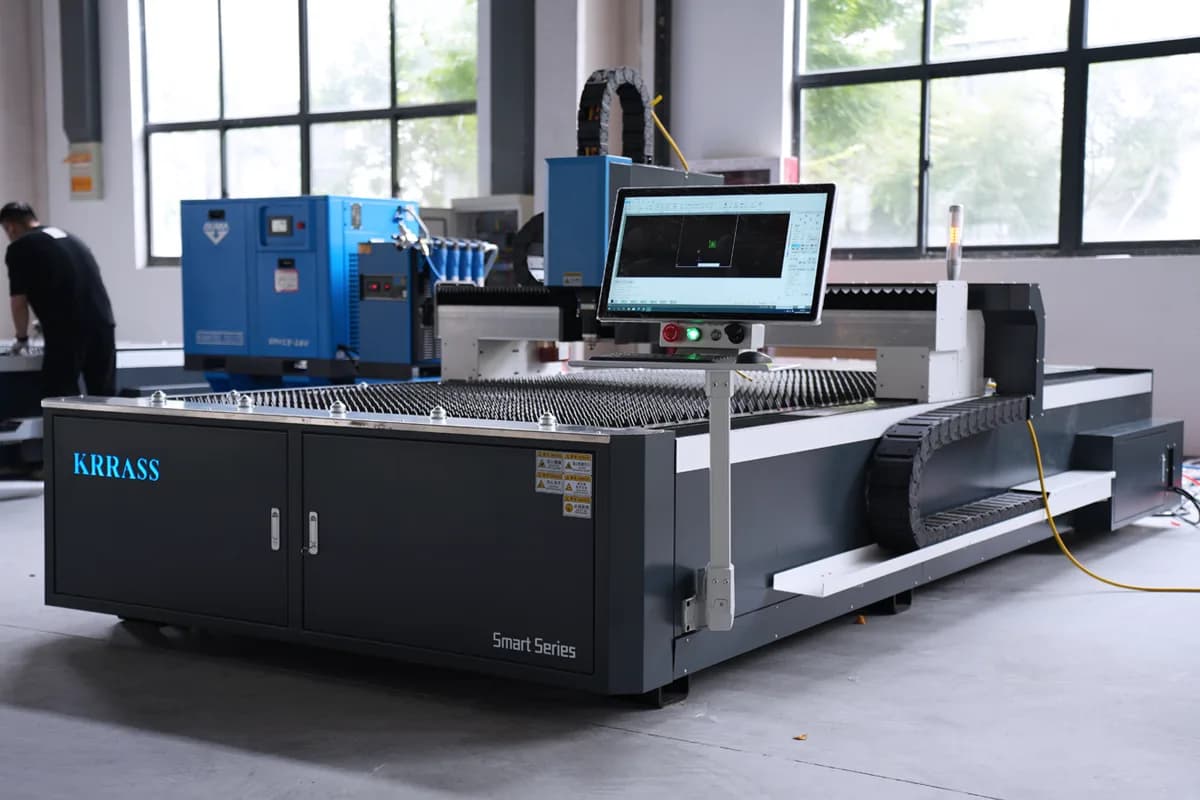

6KW Fiber Laser Cutting Machine, 6000W Sheet Metal Laser Cutting Machine Price
6KW Fiber Laser Cutting Machine Price, Sheet Metal Laser Cutting Machine Price, 6000W Sheet Metal Laser Cutting Machine for China.
Engineering details
Configuration
Explore the key specifications, components, and available options designed to support different materials, processes, and production requirements.
Technologyies
| Laser Source: | Max China MFSC 6000W |
| Laser Head: | BLT421 |
| Control system: | FSCUT4000E |
| Working Area: | 3000mm * 1524mm |
| Operating Voltage: | 380V 50Hz |
| Power: | 6000W |
| Length* Width* Height: | 4500mm * 2265mm * 1900mm |
Configurations
Main Feature

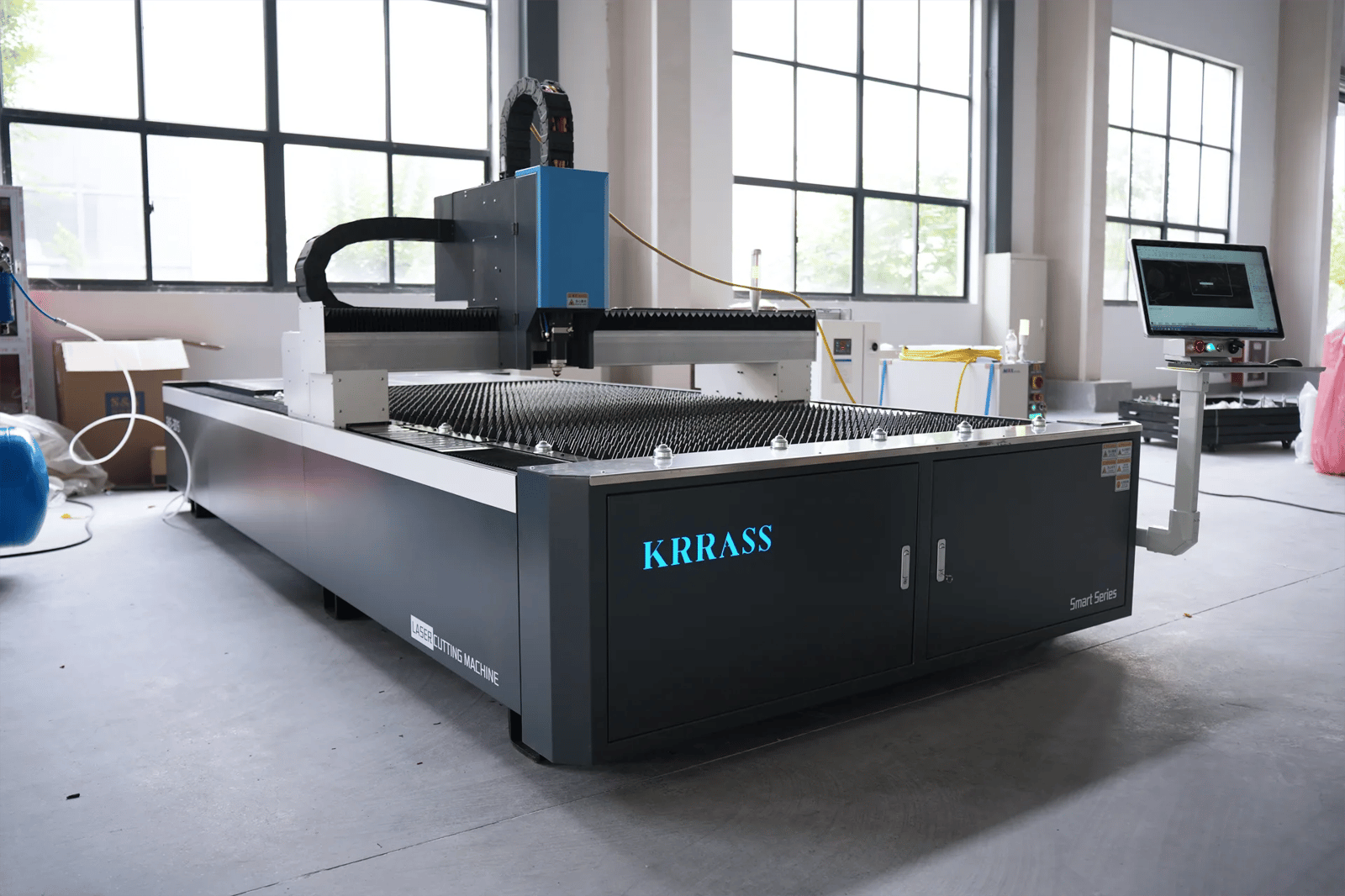

KRRASS’s top-rated 6000W Sheet Metal Laser Cutting Machine is for metal fabrication, including steel designed, aluminum, titanium, alloy, brass, copper, and iron, with different laser powers (1500W, 2000W, 3000W, 4000W, 6000W, 12000W, 20KW, 30KW, 40KW). The affordable 6000W fiber laser cutting machine is for sale at a low price, with the best fiber laser-cutting system service and support.

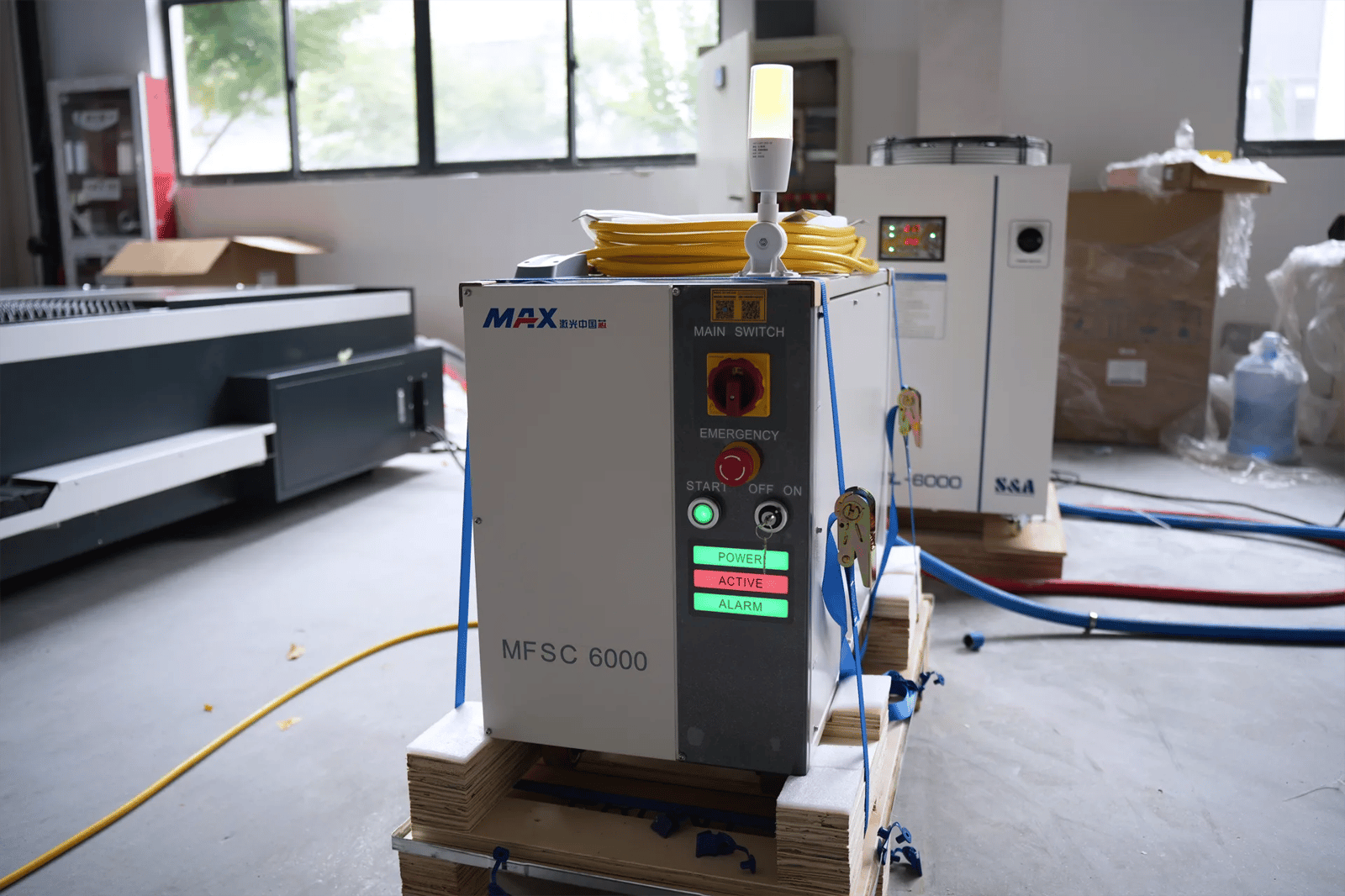

Max China MFSC 6000W Laser Source
6000W SINGLE MODULE CW FIBER LASER is a high-power fiber laser with high electro-optical conversion efficiency, compact size, good beam quality and maintenance-free. Wide fiber core diameter range from 100~600um, can be customized from 800um~1000um. Mainly used in metal welding and cladding and other fields such as new energy, 3C, precision machining.

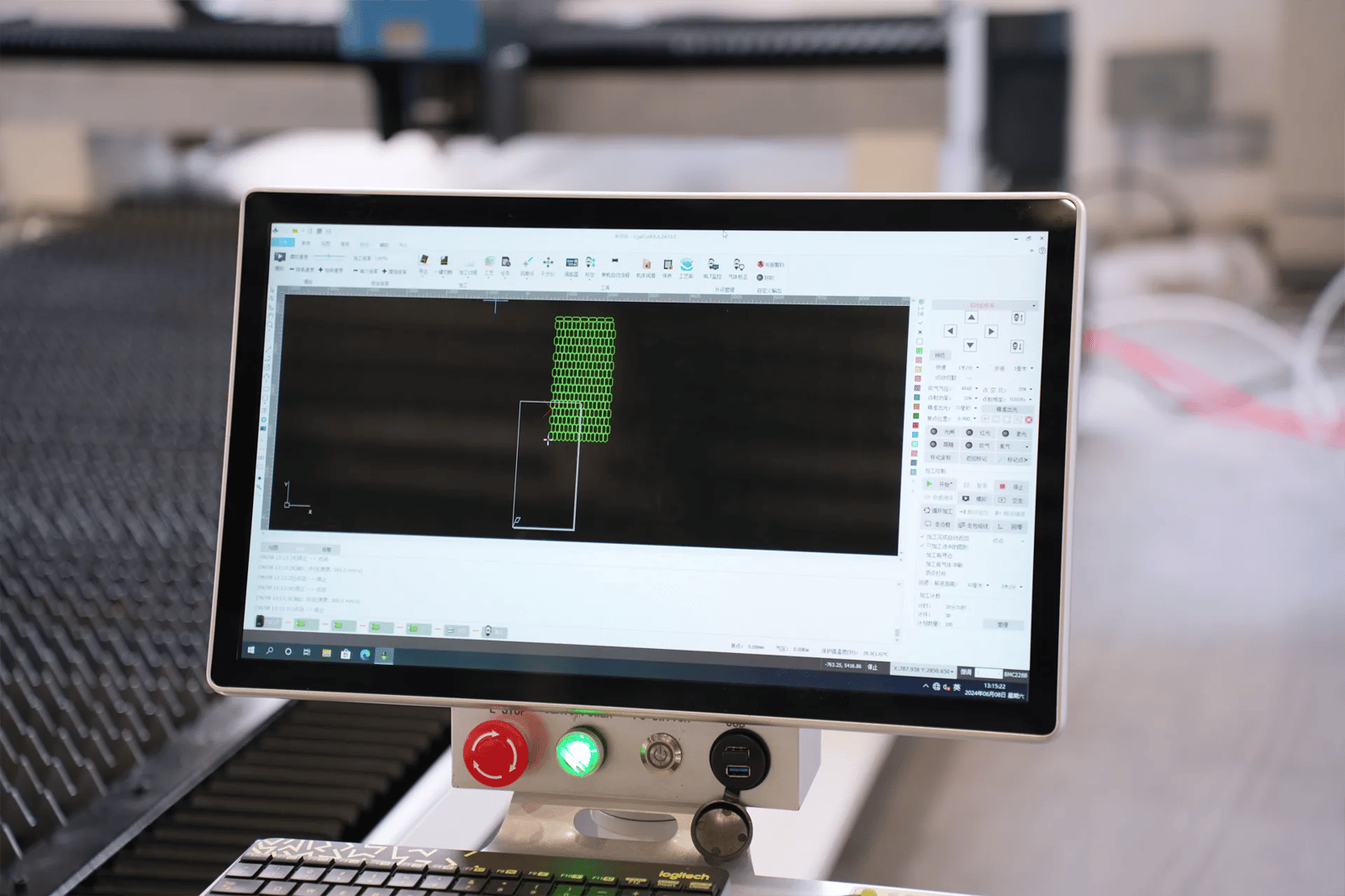

Bus Control System FSCUT4000E
It enables data transmission via EtherCAT bus and features fast speed and stability. This system is easy to be operated and rich in functions. Even green hands can cut high-quality samples.

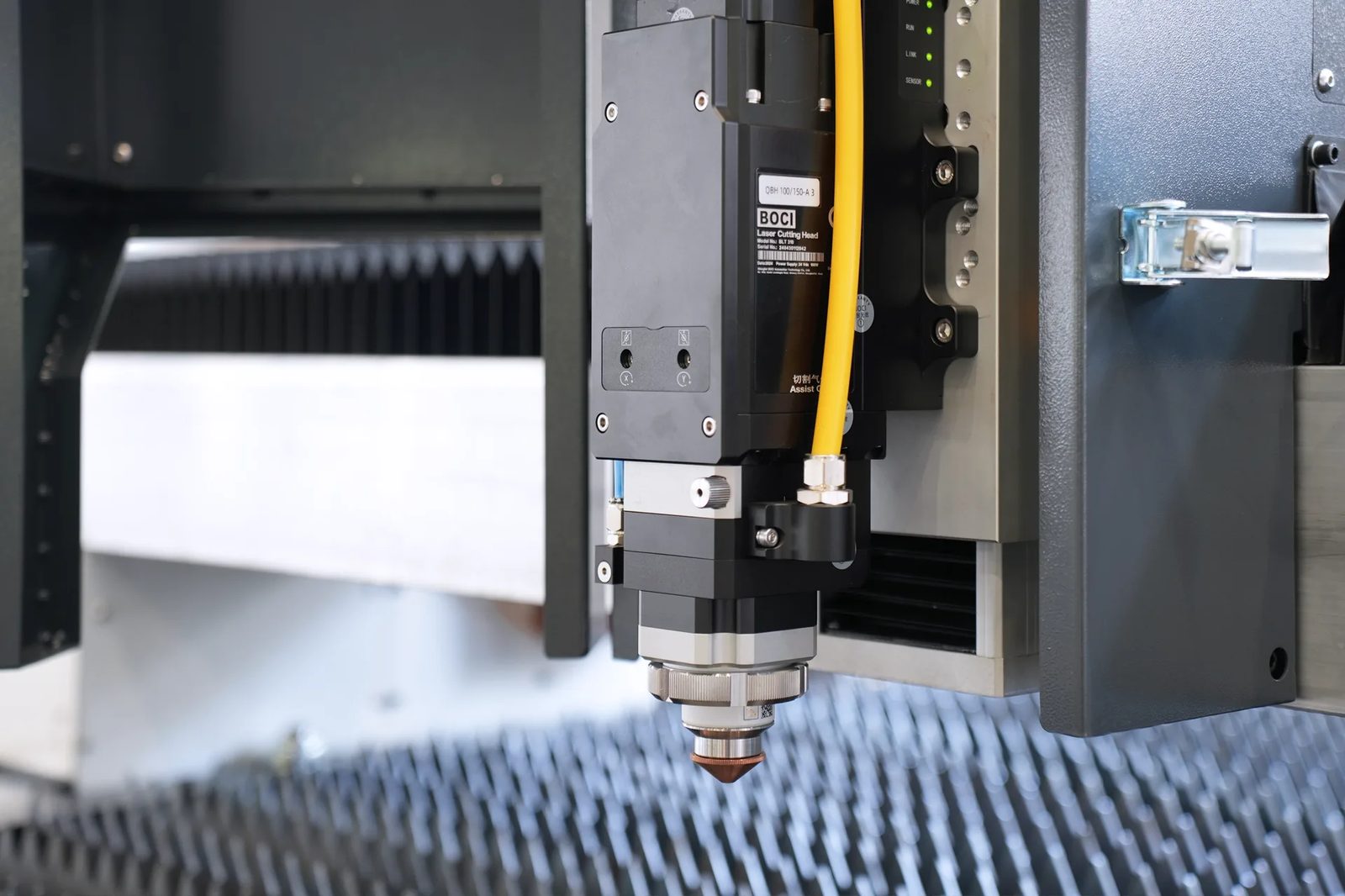

BOCHU BLT421 Smart Cutting Heads
BOCHU BLT421 cutting heads are quite cost-effective smart cutting heads designed for the laser cutting. Being impact and lightweight, it still integrates multiple sets of intelligent sensors, which ensure real-time closed-loop monitoring to give rapid diagnosis and instant warning.

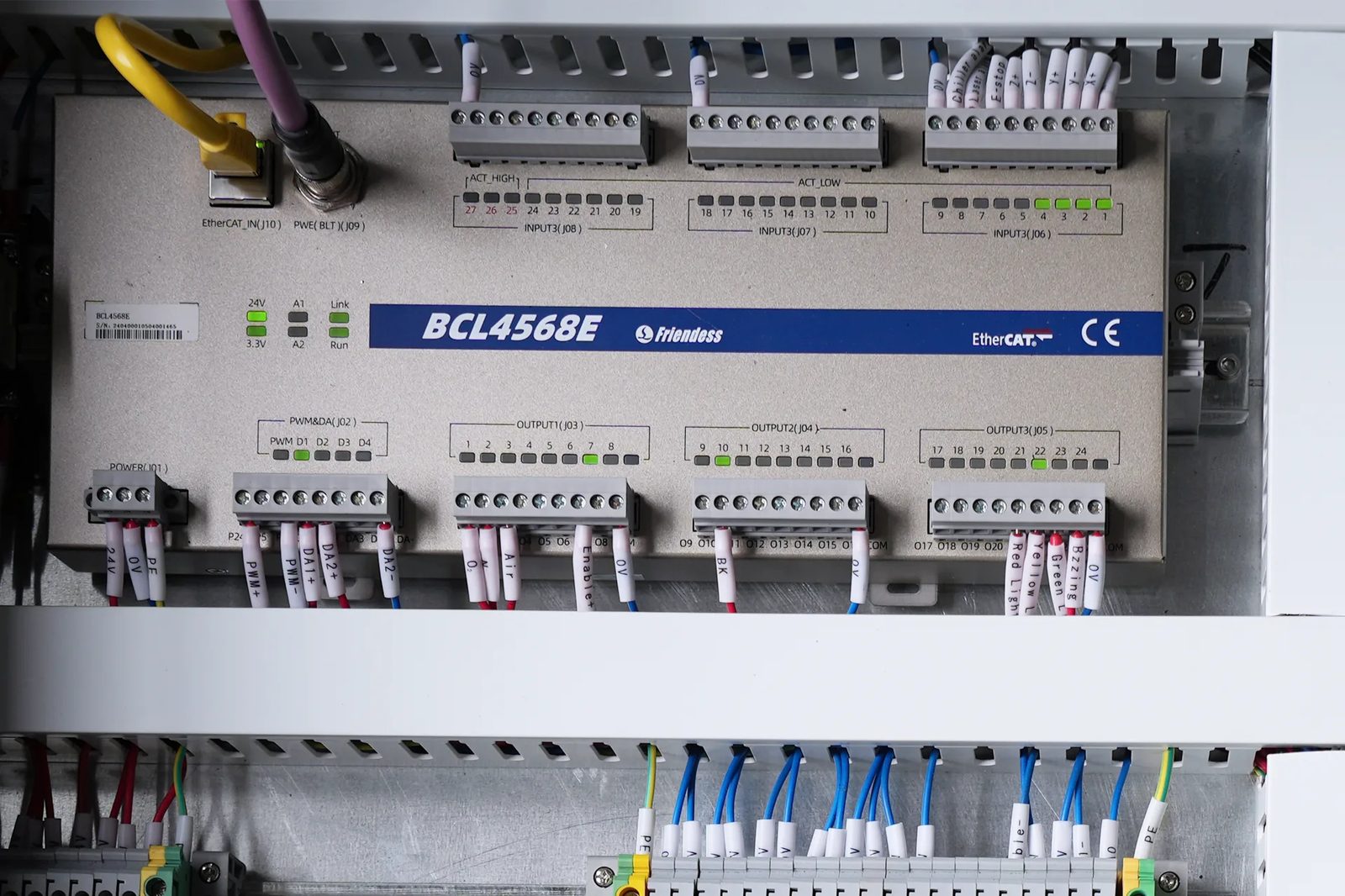

EtherCAT Controller FSCUT4000E
FSCUT4000E is a cost-effective laser control system applies to 1.5-8kW power cutting, realizes control of motion, laser, and cutting gas, common used in sheet metal, kitchen ware, and light fixture.
Terminal board model: BCL4568E

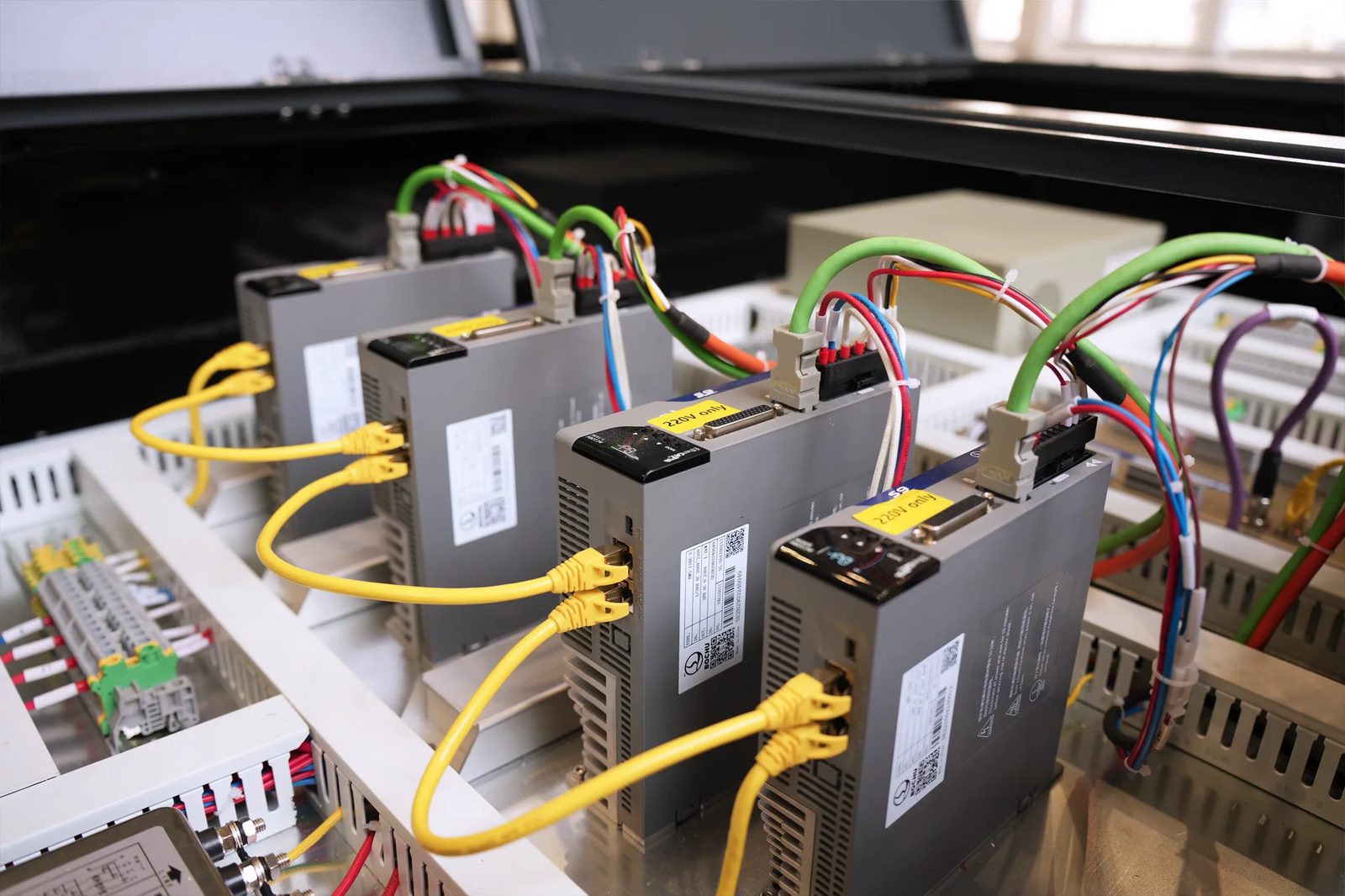

High Speed Servo Motor And Drive
High-speed servo motors and drives in laser cutting machines provide precise control and rapid movement, enhancing accuracy and efficiency. They offer high responsiveness, stability, and reliability, ensuring consistent performance and reduced downtime. Feedback systems enable real-time monitoring for precise operations, making them ideal for complex cutting tasks.

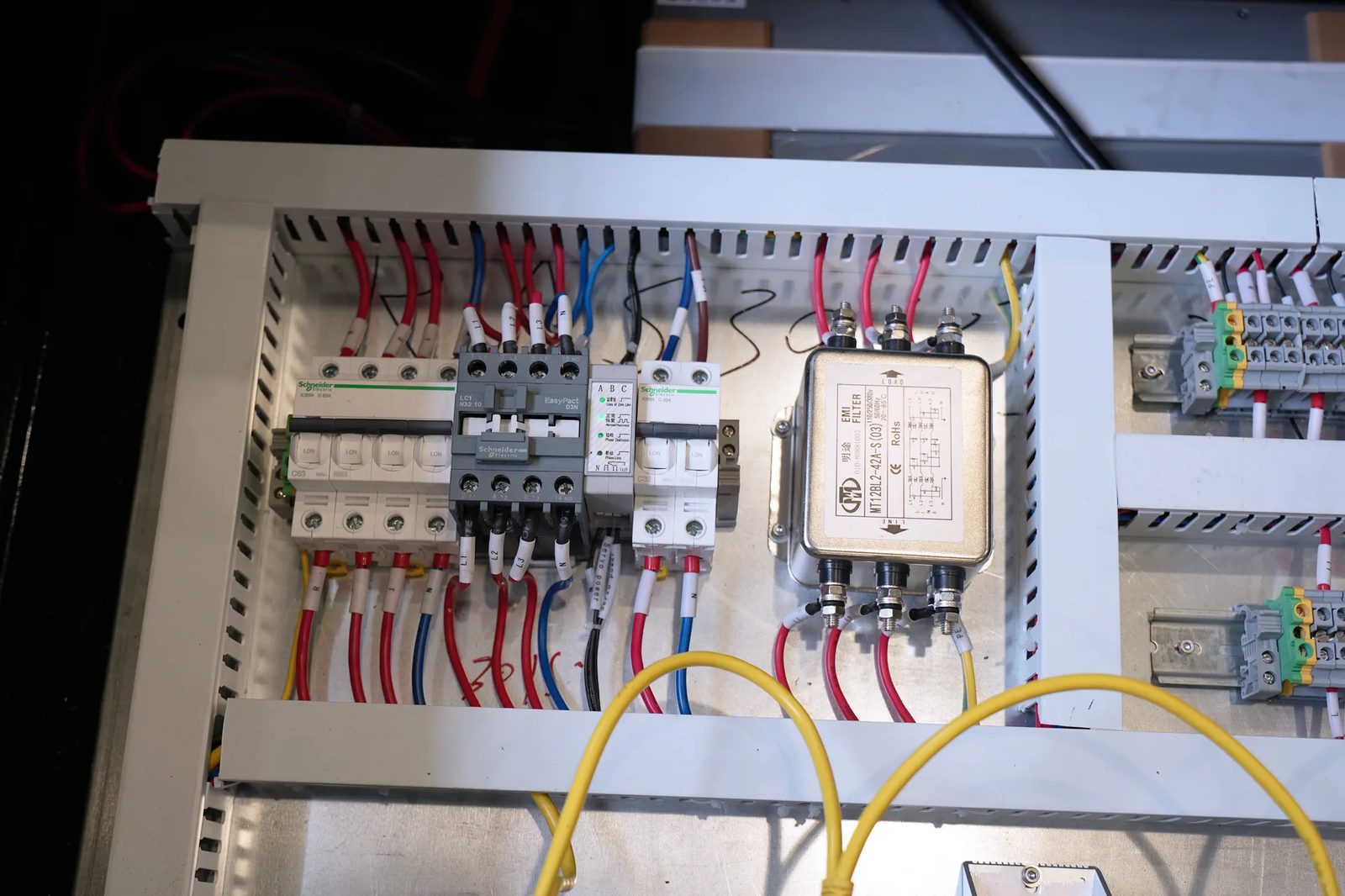

Schneider Electric
High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

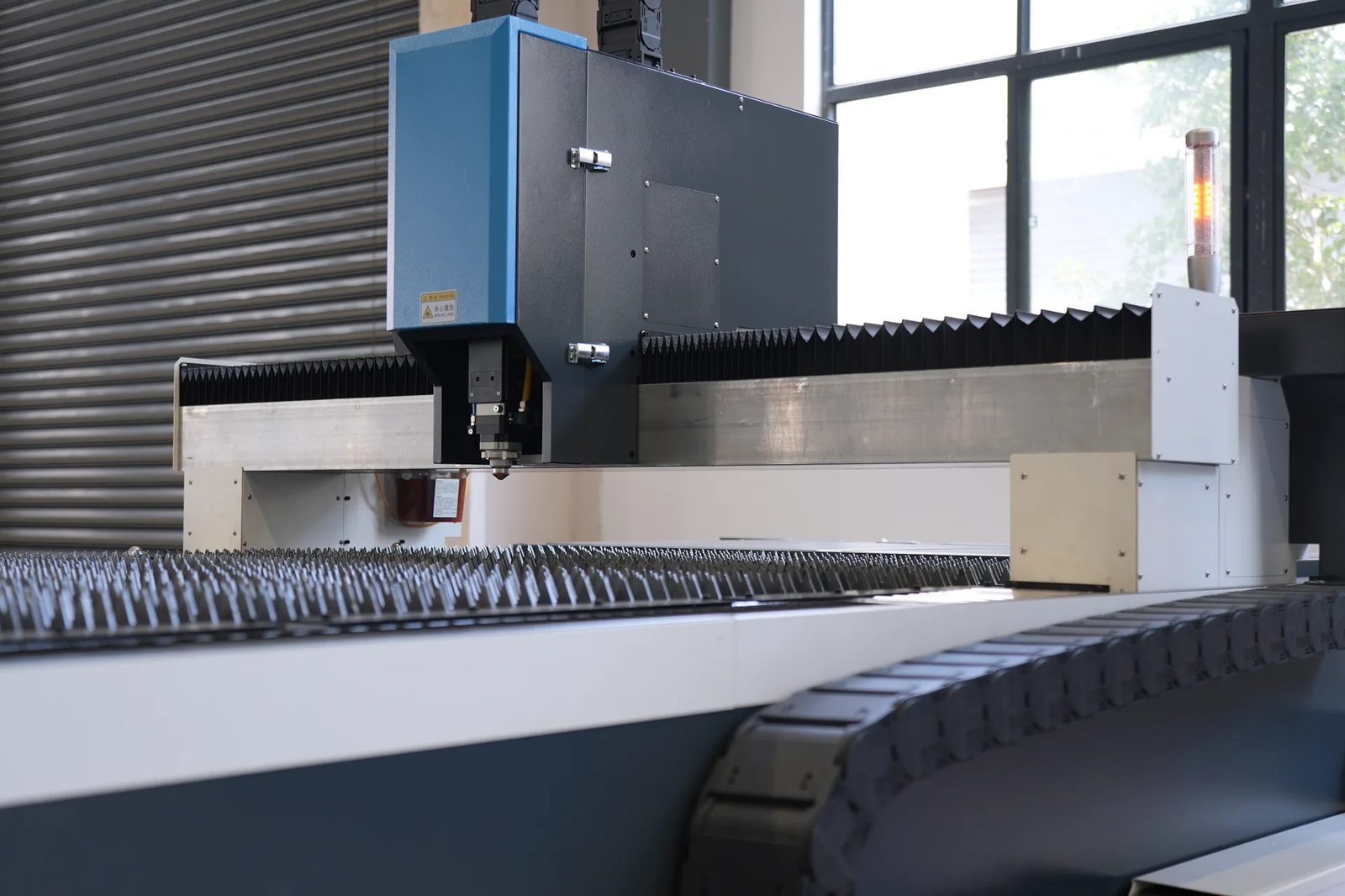

The Fifth-generation Aviation Aluminum Alloy Beam
The T6 heat treatment process processes the laser cutter machine’s full beam to make the shaft obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.

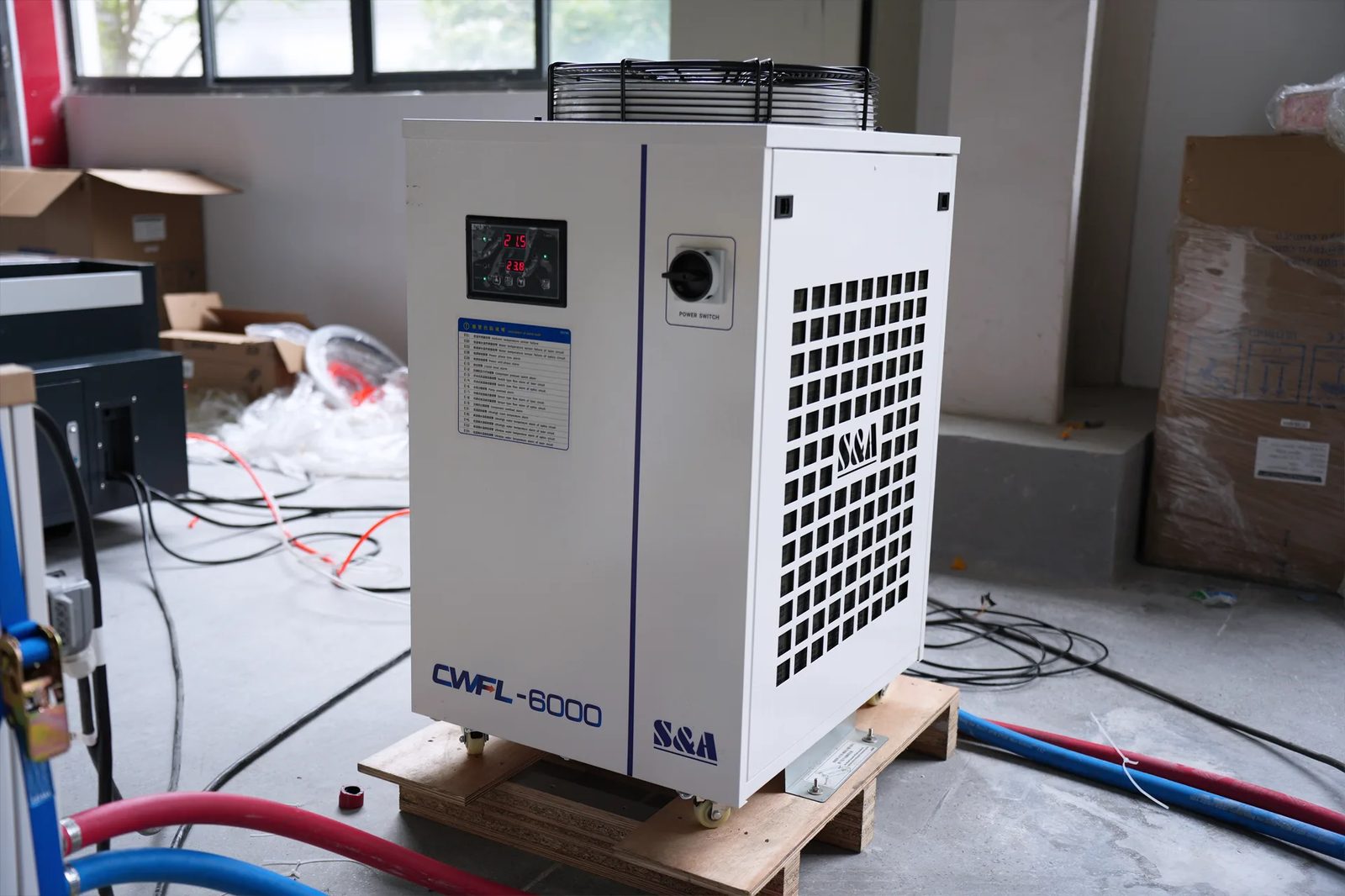

Water Cooler
A water cooler in the 6000W Sheet Metal Laser Cutting Machine regulates the temperature of the laser and components, preventing overheating and ensuring optimal performance and longevity.
6KW Fiber Laser Cutting Material Thickness
| Thickness（mm） | Speed（m/min） | Focus position | Cutting height（mm） | Gas | Nozzle type | Pressure（bar） | |
|---|---|---|---|---|---|---|---|
| Carbon steel (Q235B) | 1 | 25-32 | 0 | 1 | N2 | Single: 1.5 | 12 |
| 2 | 20-27 | -1 | 1 | Single: 2.0 | 12 | ||
| 3 | 12-15 | -1.5 | 0.5 | Single: 2.0 | 14 | ||
| 4 | 7-8.5 | -2 | 0.5 | Single: 2.0 | 14 | ||
| 5 | 5.7-6.8 | -2.5 | 0.5 | Single: 3.0 | 16 | ||
| 3 | 3.6-4.2 | +5 | 0.8 | O2 | Double: 1.2 | 0.6 | |
| 4 | 3.3-3.8 | +5 | 0.8 | Double: 1.2 | 0.6 | ||
| 5 | 3-3.6 | +5 | 0.8 | Double: 1.2 | 0.6 | ||
| 6 | 2.7-3.2 | +5 | 0.8 | Double: 1.2 | 0.6 | ||
| 8 | 2.2-2.5 | +6 | 0.8 | Double: 1.2 | 0.6 | ||
| 10 | 2.0-2.3 | +7.5 | 0.8 | Double: 1.2 | 0.6 | ||
| 12 | 1.9-2.1 | +7.5 | 0.8 | Double: 1.2 | 0.6 | ||
| 14 | 1.4-1.7 | +9 | 1 | Double: 1.4 | 0.6 | ||
| 16 | 1.2-1.4 | +9 | 1 | Double: 1.4 | 0.6 | ||
| 18 | 0.7-0.8 | +12 | 0.3 | Single: 1.4 | 0.8 | ||
| 20 | 0.5-0.6 | +4 | 0.8 | Double: 5.0 | 0.6 | ||
| 20 | 0.6-0.7 | +13 | 0.3 | Single: 1.4 | 0.8 | ||
| 22 | 0.45-0.5 | +4 | 0.8 | Double: 5.0 | 0.6 | ||
| 22 | 0.5-0.6 | +13 | 0.3 | Single: 1.5 | 1 | ||
| 25 | 0.4-0.5 | +14 | 0.3 | Single: 1.5 | 1 | ||
| Stainless steel (SUS304) | 1 | 35-45 | 0 | 0.8 | N2 | Single: 1.5 | 10 |
| 2 | 23-32 | -1 | 0.5 | Single: 2.0 | 12 | ||
| 3 | 15-18 | -1.5 | 0.5 | Single: 2.5 | 12 | ||
| 4 | 9-13 | -2 | 0.5 | Single: 2.5 | 14 | ||
| 5 | 7-8.5 | -2.5 | 0.5 | Single: 3.0 | 14 | ||
| 6 | 4-5.5 | -3 | 0.5 | Single: 3.0 | 15 | ||
| 8 | 3-3.8 | -4 | 0.5 | Single: 3.0 | 15 | ||
| 10 | 1.8-2.1 | -6 | 0.5 | Single: 4.0 | 15 | ||
| 12 | 1-1.3 | -7.5 | 0.5 | Single: 5.0 | 16 | ||
| 14 | 0.85-1.1 | -9 | 0.5 | Single: 5.0 | 16 | ||
| 16 | 0.6 | -10.5 | 0.3 | Single: 5.0 | 18 | ||
| 18 | 0.5 | -12 | 0.3 | Single: 5.0 | 20 | ||
| 20 | 0.3 | -14 | 0.3 | Single: 6.0 | 20 | ||
| Aluminum (6061) | 1 | 30-37 | 0 | 1 | N2 | Single: 1.5 | 12 |
| 2 | 22-27 | -1 | 0.5 | Single: 2.0 | 12 | ||
| 3 | 13-18 | -1.5 | 0.5 | Single: 2.5 | 14 | ||
| 4 | 9-11 | -2 | 0.5 | Single: 2.5 | 14 | ||
| 5 | 5-6.5 | -3 | 0.5 | Single: 3.0 | 14 | ||
| 6 | 3.6-4.2 | -3 | 0.5 | Single: 3.0 | 16 | ||
| 8 | 1.8-2.1 | -4 | 0.5 | Single: 3.0 | 16 | ||
| 10 | 1-1.3 | -4.5 | 0.5 | Single: 3.5 | 18 | ||
| 12 | 0.7-1 | -5 | 0.5 | Single: 4.0 | 18 | ||
| 14 | 0.5 | -5 | 0.3 | Single: 4.0 | 18 | ||
| 16 | 0.4 | -8 | 0.3 | Single: 6.0 | 20 | ||
| Brass | 1 | 25-32 | 0 | 1 | N2 | Single: 1.5 | 12 |
| 2 | 17-21 | -1 | 0.5 | Single: 2.0 | 12 | ||
| 3 | 12-15 | -1 | 0.5 | Single: 2.5 | 14 | ||
| 4 | 8-9.3 | -1.5 | 0.5 | Single: 3.0 | 14 | ||
| 5 | 4.5-5.5 | -2 | 0.5 | Single: 3.0 | 14 | ||
| 6 | 3.2-4 | -3.5 | 0.5 | Single: 3.0 | 16 | ||
| 8 | 1.5-2 | -5 | 0.5 | Single: 3.5 | 16 | ||
| 10 | 1 | -6 | 0.5 | Single: 3.5 | 16 | ||
| 12 | 0.7 | -8 | 0.3 | Single: 4.0 | 18 | ||
| Copper | 1 | 20-27 | -0.5 | 1 | O2 | 2.0S | 8 |
| 2 | 10-13 | -1 | 0.5 | 2.0S | 8 | ||
| 3 | 7-9 | -2 | 0.5 | 2.0S | 8 | ||
| 4 | 4-5.2 | -2 | 0.5 | 2.0S | 8 | ||
| 5 | 3 | -3 | 0.5 | 2.5S | 8 | ||
| 6 | 2 | -4 | 0.5 | 2.5S | 8 |
