3000W Fiber Laser Cutting Machine, 3KW Fiber Laser Cutting Machine for Metal
3000W Fiber Laser Cutting Machine Price, Sheet Metal Laser Cutting Machine Price, 3000W Sheet Metal Laser Cutting Machine for China.
Engineering details
Configuration
Explore the key specifications, components, and available options designed to support different materials, processes, and production requirements.
Technologyies
| Laser Source: | Max China MFSC 3000W |
| Laser Head: | BLT310 |
| Control system: | FSCUT2000E |
| Working Area: | 3000mm * 1500mm |
| Operating Voltage: | 380V 50Hz |
| Power: | 3000W |
| Length* Width* Height: | 4500mm * 2265mm * 1900mm |
Configurations
Main Feature

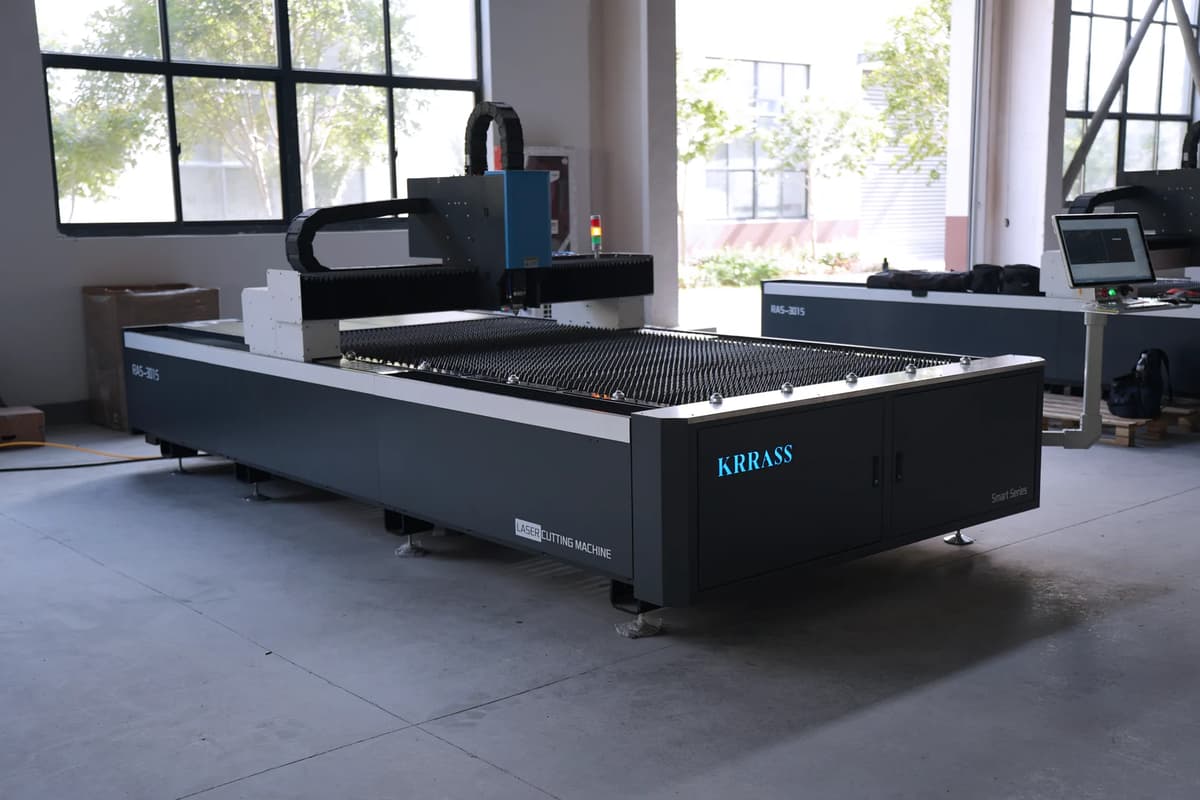

KRRASS’s RAS-3015 Smart 3000W Fiber Laser Cutting Machine is for metal fabrication, including steel designed, aluminum, titanium, alloy, brass, copper, and iron, with different laser powers (1500W, 2000W, 3000W, 4000W, 6000W, 12000W, 20KW, 30KW, 40KW). The affordable 1500W fiber laser cutting machine is for sale at a low price, with the best fiber laser-cutting system service and support.

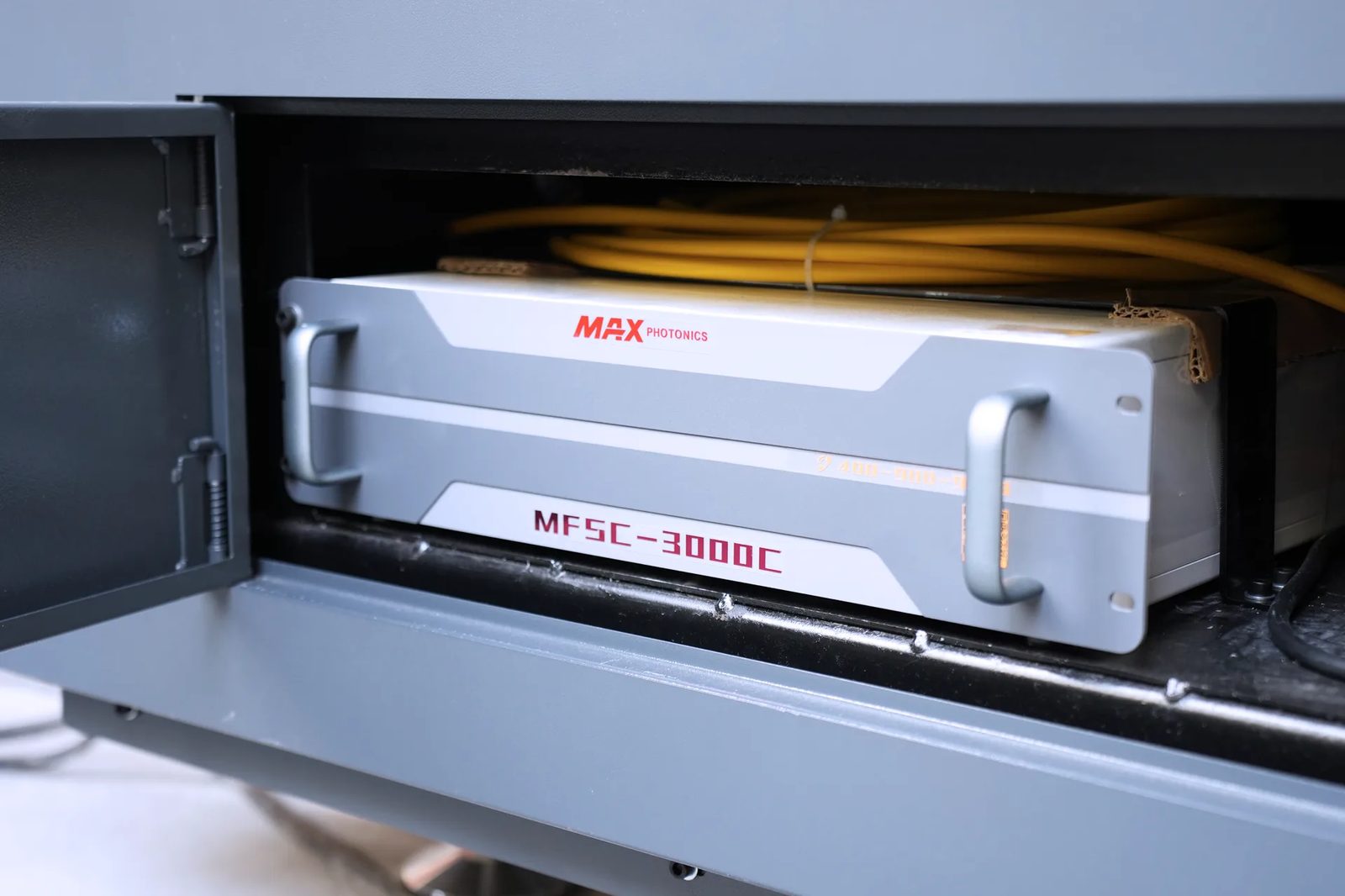

Max China MFSC 3000W Laser Source
MFSC 3000W Single Module CW Fiber Laser, based on modular design,has excellent beam quality and high stability, which structure is compact and water-cooling. The laser can be adjusted continuously, and the beam is transmitted be fiber and QBH connector, which is ideal for laser cutting, laser welding, etc . The laser is very suitable for system intergration with robot or machine tool, and is widely used for laser cutting, welding, 3D printing, electronics, automobile parts,aerospace, etc.

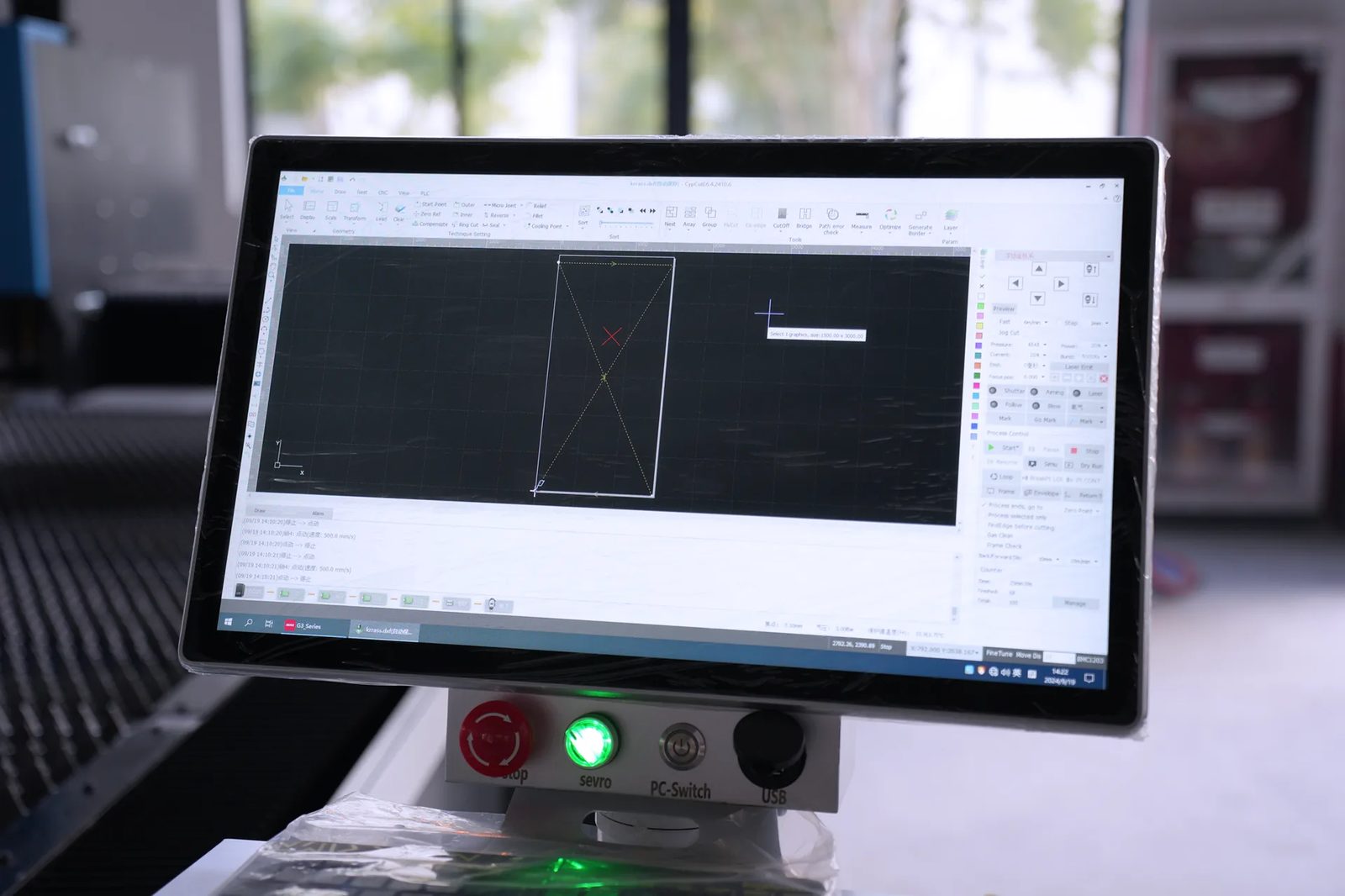

Bus Control System FSCUT2000E
It enables data transmission via EtherCAT bus and features fast speed and stability. This system is easy to be operated and rich in functions. Even green hands can cut high-quality samples.

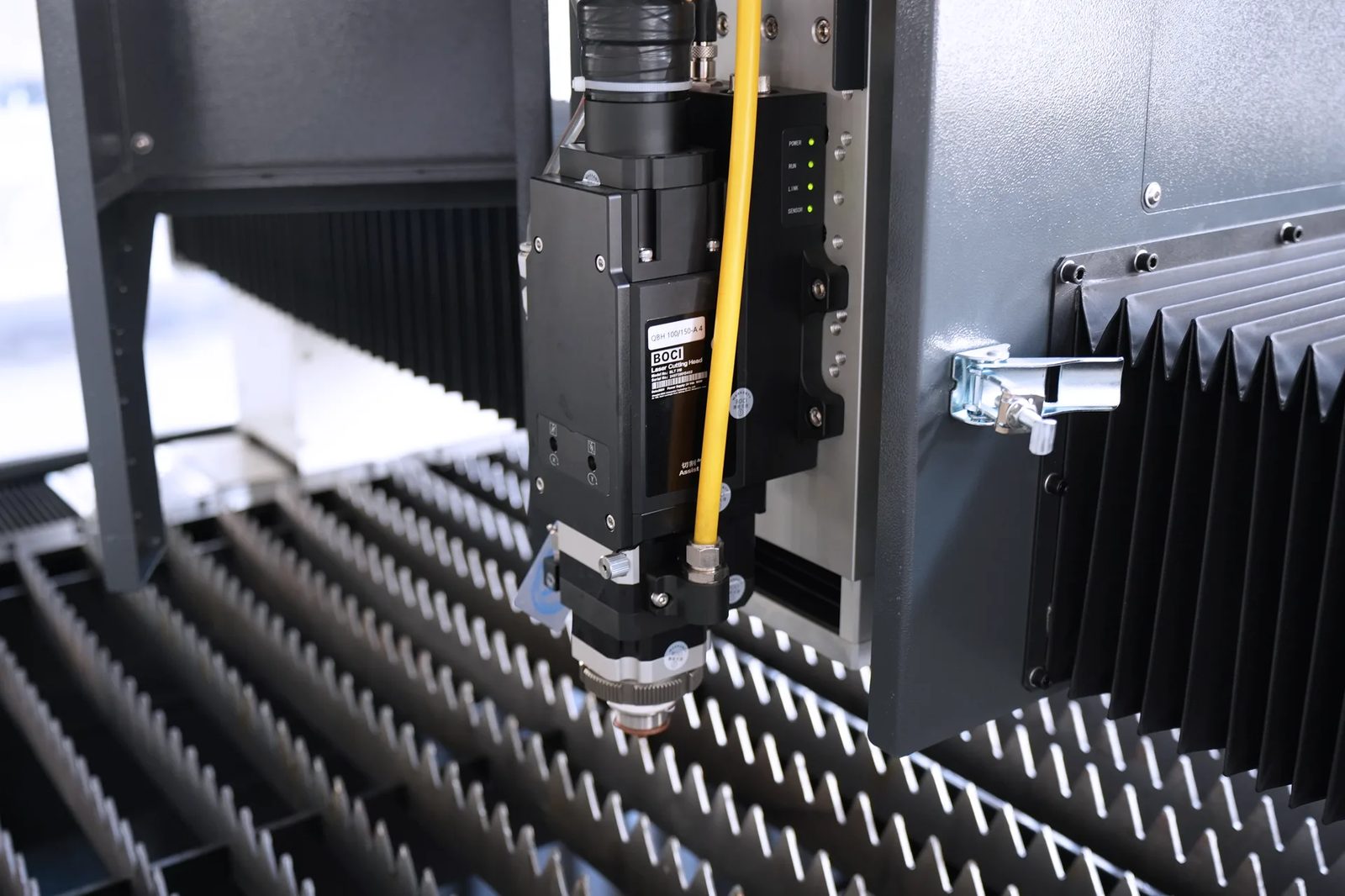

BOCHU BLT310 Smart Cutting Heads
BOCHU BLT310 cutting heads are quite cost-effective smart cutting heads designed for the laser cutting. Being impact and lightweight, it still integrates multiple sets of intelligent sensors, which ensure real-time closed-loop monitoring to give rapid diagnosis and instant warning.

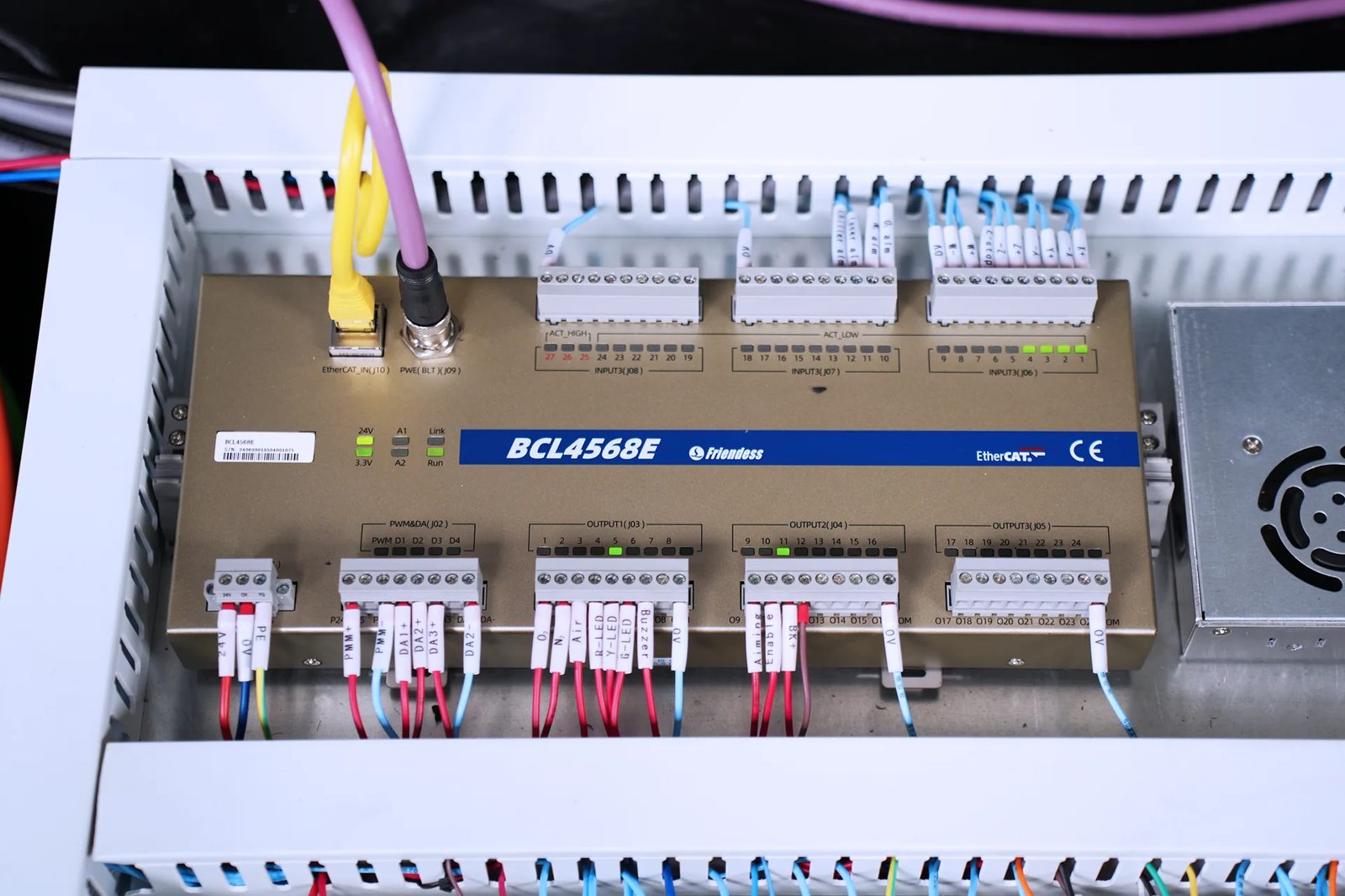

EtherCAT Controller FSCUT2000E
FSCUT2000E is a cost-effective laser control system applies to 1.5-3kW power cutting, realizes control of motion, laser, and cutting gas, common used in sheet metal, kitchen ware, and light fixture.
Terminal board model: BCL4568E

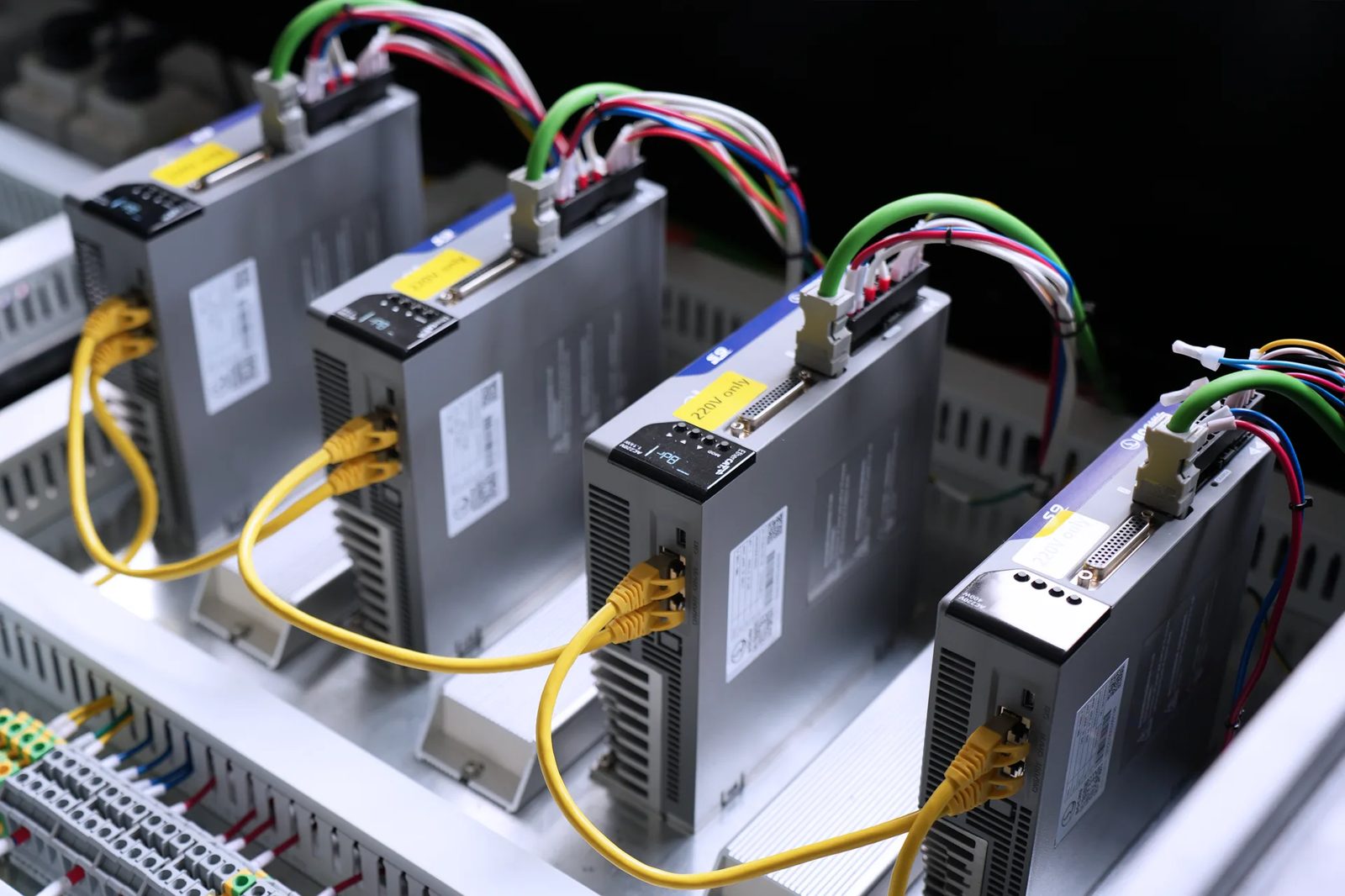

High Speed Servo Motor And Drive
High-speed servo motors and drives in laser cutting machines provide precise control and rapid movement, enhancing accuracy and efficiency. They offer high responsiveness, stability, and reliability, ensuring consistent performance and reduced downtime. Feedback systems enable real-time monitoring for precise operations, making them ideal for complex cutting tasks.

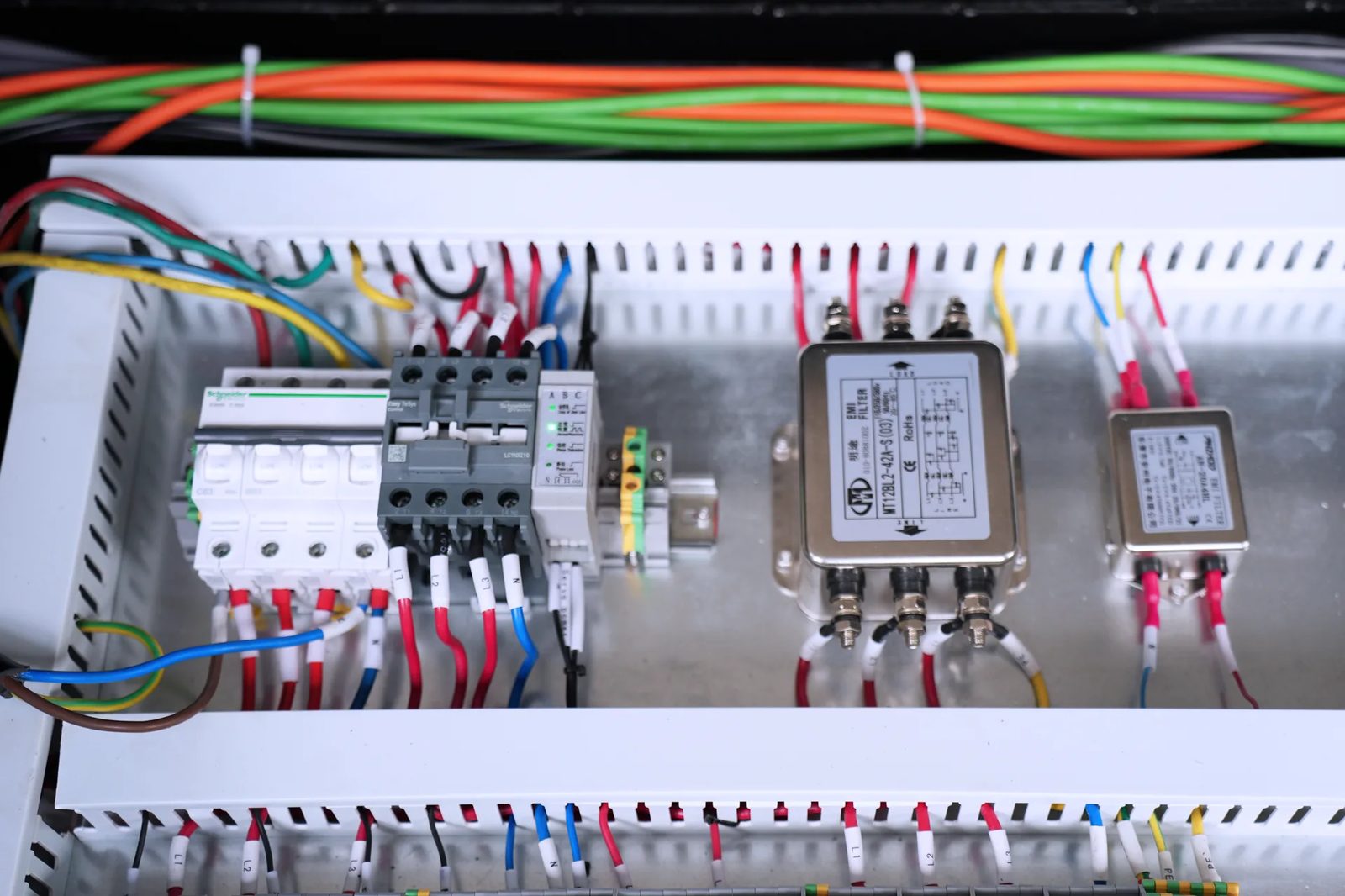

Schneider Electric
High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

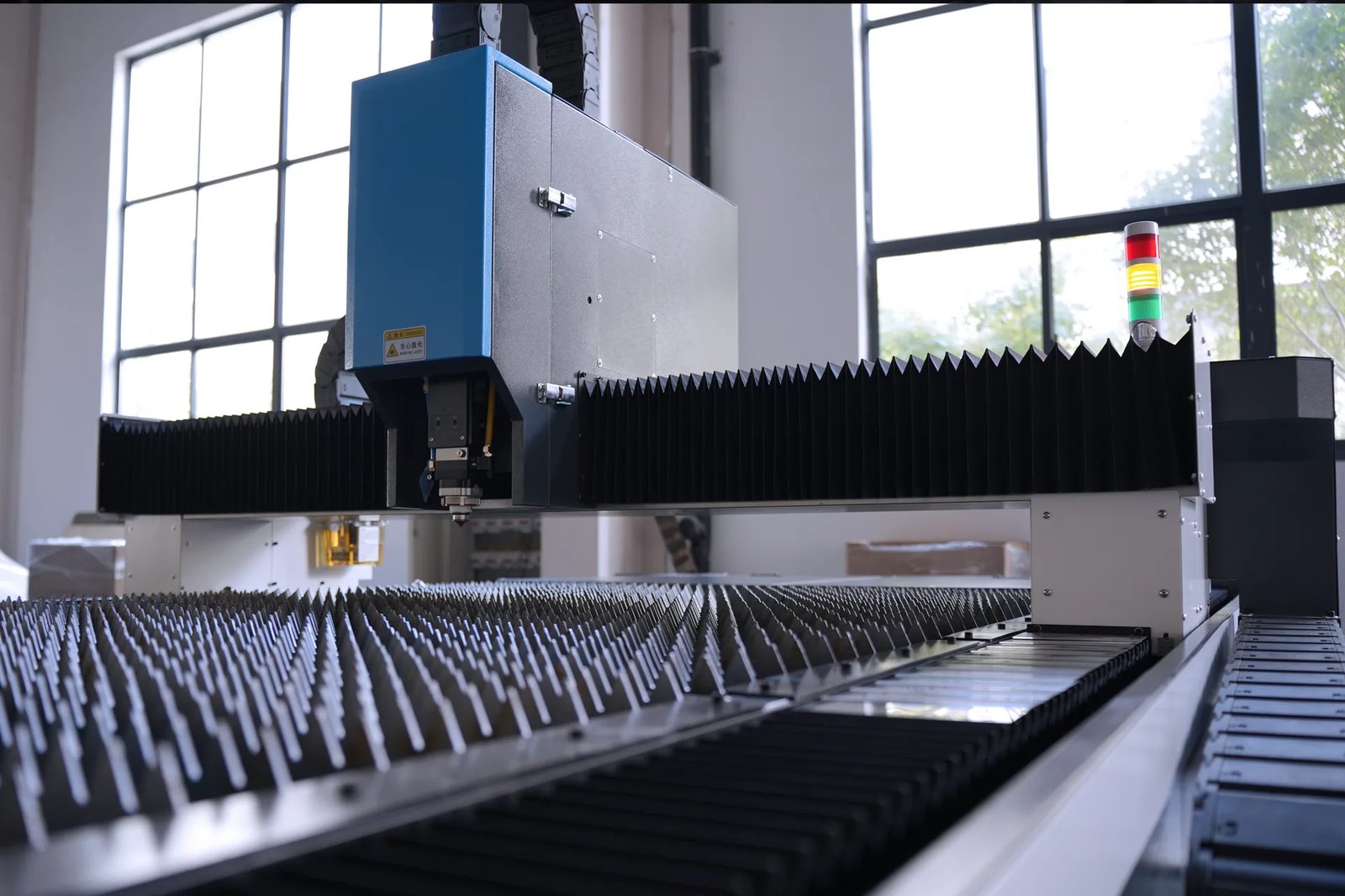

The Fifth-generation Aviation Aluminum Alloy Beam
The T6 heat treatment process processes the laser cutter machine’s full beam to make the shaft obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.

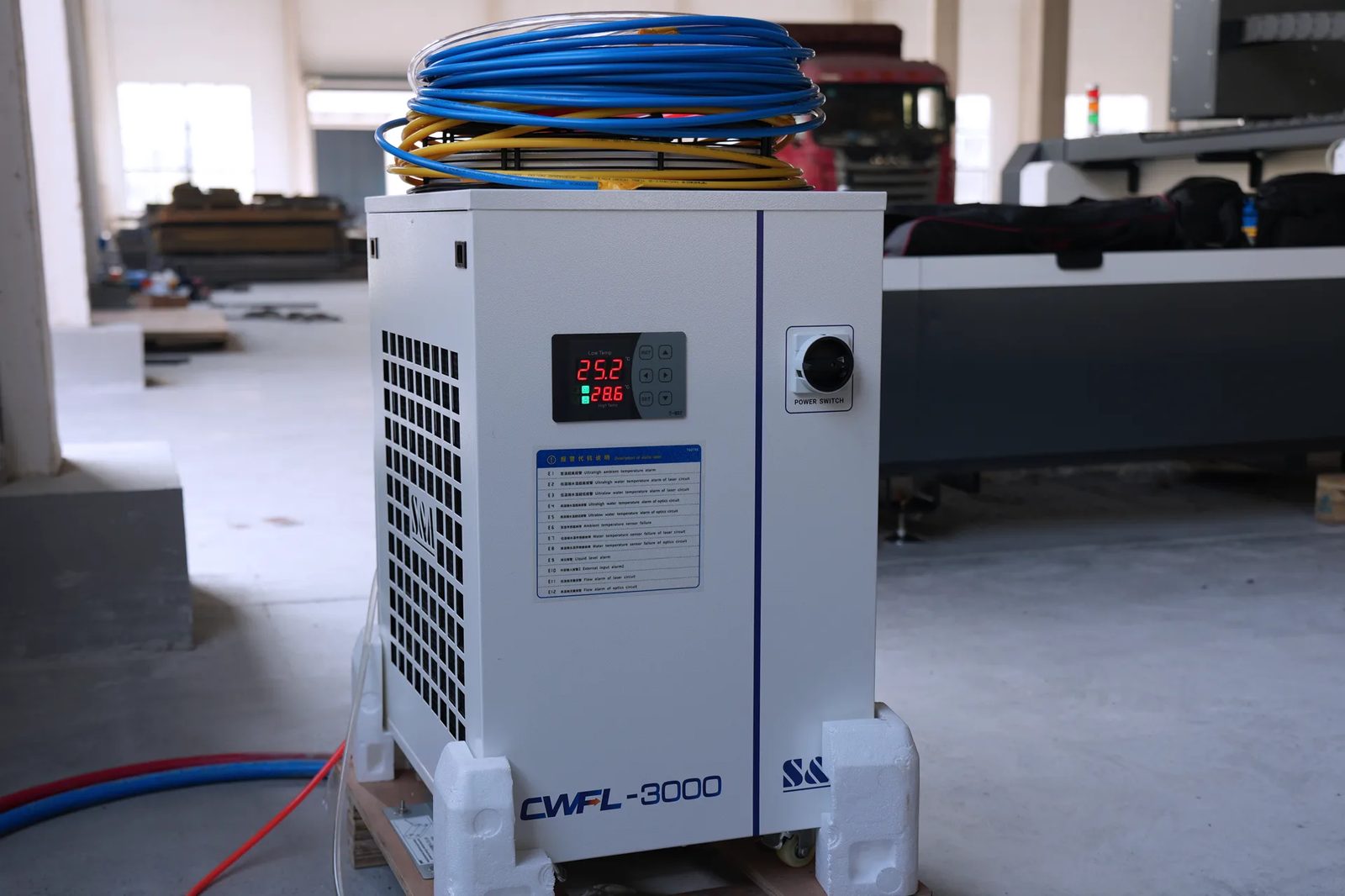

Water Cooler
A water cooler in the 3000W Fiber Laser Cutting Machine regulates the temperature of the laser and components, preventing overheating and ensuring optimal performance and longevity.
3000W Fiber Laser Cutting Machine Material Thickness
| Thickness（mm） | Speed（m/min） | Focus position | Cutting height（mm） | Gas | Nozzle type | Pressure（bar） | Cutting effect | |
|---|---|---|---|---|---|---|---|---|
| Carbon steel (Q235B) | 1 | 59 | 0 | 0.5 | N2 | Single：1.0 | 12~16 | Bright surace |
| 2 | 28 | -1~-1.5 | 0.5 | Single：2.0 | 12~16 | |||
| 3 | 4 | 4.5~5.5 | 0.8 | O2 | Double：1.2 | 0.6~0.9 | ||
| 4 | 3.5 | 4.5~5.5 | 0.8 | Double：1.2 | 0.6~0.9 | |||
| 6 | 2.7 | 4.5~5.5 | 0.8 | Double：1.2 | 0.6~0.9 | |||
| 8 | 2.2 | 4.5~5.5 | 1.5 | Double：4.0 | 0.6~0.9 | |||
| 10 | 1.5 | 2~3 | 1.5 | Double：4.0 | 0.6~0.9 | Matte surface | ||
| 12 | 1 | 2~3 | 1.5 | Double：4.0 | 0.6~0.9 | |||
| 14 | 0.95 | 2~3 | 1.5 | Double：4.0 | 0.6~0.9 | |||
| 16 | 0.85 | 2.5~3.5 | 1.5 | Double：4.0 | 0.6~0.9 | |||
| 18 | 0.72 | 2.5~3.5 | 1.5 | Double：4.0 | 0.6~0.9 | |||
| 20 | 0.65 | 2.5~3.5 | 1.5 | Double：4.0 | 0.6~0.9 | |||
| 22 | 0.55 | 2.5~3.5 | 1.5 | Double：4.0 | 0.6~0.9 | |||
| 25 | 0.5 | 2.5~4 | 1.5 | Double：4.0 | 0.6~0.9 | |||
| Stainless steel (SUS304) | 1 | 0 | 0.5 | N2 | Single：1.0 | 12~16 | No slag | |
| 2 | 0~-0.5 | 0.5 | Single：2.0 | 12~16 | ||||
| 3 | 12 | -1~-1.5 | 0.5 | Single：2.0 | 12~16 | |||
| 4 | 4.3 | -3.5~-4 | 0.5 | Single：3.5 | 12~16 | |||
| 6 | 1.8 | -5~-6 | 0.5 | Single：3.5 | 16~18 | |||
| 8 | 1.2 | -6.5~-7 | 0.5 | Single：3.5 | 16~18 | |||
| 10 | 0.9 | -7.5~-8.5 | 0.5 | Single：3.5 | 16~18 | A small amount of slag | ||
| 12 | 0.4 | -9~-10 | 0.5 | Single：4.0 | 16~20 | A small amount of dross | ||
| Aluminum (6061) | 1 | 37~40 | 0 | 0.5 | Air | Single：1.0/1.2/1.5 | 12~16 | |
| 2 | 20~22 | 0~-0.5 | 0.5 | Single：1.5/2.0 | 12~16 | |||
| 3 | 8~9 | 0~-0.5 | 0.5 | Single：2.0/2.5/3.0 | 12~16 | |||
| 4 | 5~5.2 | -1~-1.5 | 0.5 | Single：3.0 | 12~16 | |||
| 6 | 2.2~2.5 | -2~-3 | 0.5 | Single：3.5/4.0 | 12~16 | |||
| 8 | 1~1.2 | -3~-4 | 0.5 | Single：4.0 | 16~18 | |||
| 10 | 0.5~0.6 | -5~-5.5 | 0.5 | Single：4.0 | 16~18 | |||
| Brass | 1 | 15~17 | 0 | 1.5 | Air | Single：1.0/1.2/1.5 | 12~16 | |
| 2 | 18~20 | 0~-0.5 | 2.5 | Single：1.5/2.0 | 12~16 | |||
| 3 | 7~7.5 | 0~-0.5 | 3.5 | Single：2.0/2.5/3.0 | 12~16 | |||
| 4 | 4~4.5 | -1~-1.5 | 4.5 | Single：3.0 | 12~16 | |||
| 6 | 2.0~2.2 | -2~-3 | 5.5 | Single：3.5/4.0 | 12~16 | |||
| 8 | 0.9~1.1 | -3~-4 | 6.5 | Single：4.0 | 16~18 | |||
| 10 | 0.5~0.6 | -5~-5.5 | 7.5 | Single：4.0 | 16~18 |
